UN-ALS50J01

Product Features:


· Developed for 32mm big frame sensor

· Large Aperture, upto F2.4
· High relative illumination
· Lens for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge
Inquiry now
  • description

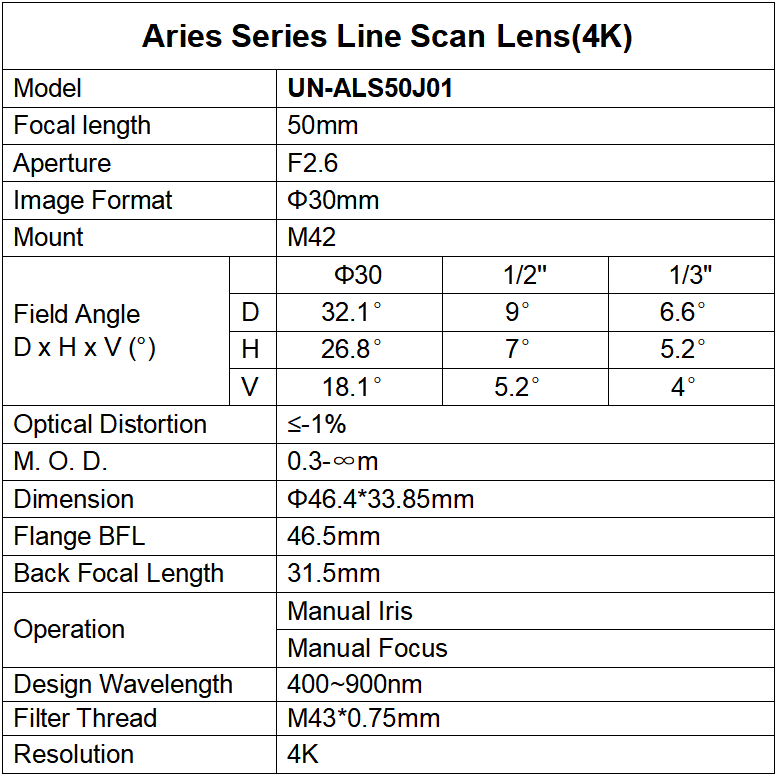

Aries Series Line Scan Lens(4K)

Model

UN-ALS50J01

Focal length

50mm

Aperture

F4.0

Image Format

30

Mount

M42

Field Angle

D x H x V (°)

D

32.1°

H

26.8°

V

18.1°

Optical Distortion

<1%

M. O. D.

0.4m

Dimension

Φ46.4*33.85mm

Flange BFL

46.5mm

Back Focal Length

31.5mm

Operation

Manual Iris

Manual Focus

Filter Thread

M43*0.75
