· High relative illumination and high contrast
· Low distortion and excellent corner brightness
· High resolution
· Compatible with 1" and 1.1" 12MP camera
|

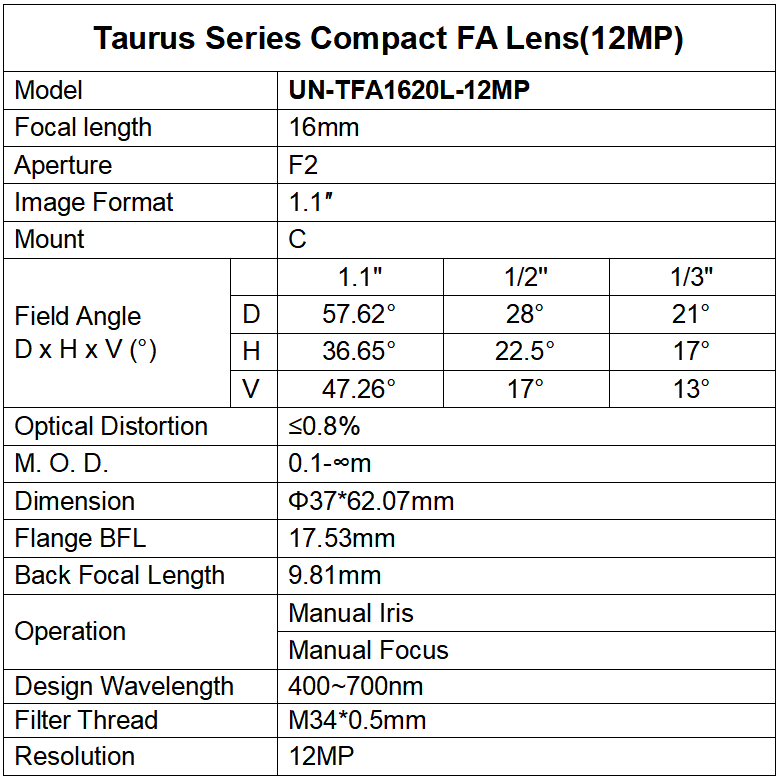

Taurus Series 1.1″ Format FA Lens(12MP) |
||
|
Model |
UN-TFA1620L-12MP |
|
|
Focal length |
16mm |
|
|
Aperture |
F2.0 |
|
|
Image Format |
1.1″ |
|
|
Mount |
C |
|
|
Field Angle D x H x V (°) |
|
1.1’’ |
|
D |
57.62° |
|
|
H |
47.62° |
|
|
V |
36.65° |
|
|
Optical Distortion |
≤0.8% |
|
|
M. O. D. |
0.10m |
|
|
Dimension |
Φ37*62.07 |
|
|
Flange BFL |
17.526mm |
|
|
Back Focal Length |
9.81mm |
|
|
Operation |
Manual Iris |
|
|
Manual Focus |
||
|
Design Wavelength |
400-900nm |
|
|
Filter Thread |
M34*0.5 |
|
Prev :
UN-TFA1228L-12MP
UN-TFA1228L-12MP
UN-TFA7522L-12MP
UN-TFA1228C-10MP
|
Taurus Series Compact FA Lens(10MP) |
|||||
|
Model |
UN-TFA1228C-10MP |
||||
|
Focal length |
12mm |
|
|||
|
Aperture |
F2.8-16 |
||||
|
Image Format |
2/3"(11mm) |
||||
|
Mount |
C |
||||
|
Field Angle D x H x V (°) |
|
2/3″ |
1/2″ |
1/3" |
|
|
D |
49.2° |
36.9° |
28.1° |
||
|
H |
40.3° |
29.9° |
22.7° |
||
|
V |
30.8° |
22.7° |
17.1° |
||
|
Optical Distortion |
0.037% y=5.5mm |
-0.17% y=4.0mm |
-0.15% y=4.0mm |
||
|
M. O. D. |
0.15m~∞ |
||||
|
Dimension |
Φ29*41.5mm |
||||
|
Flange BFL |
17.526mm |
||||
|
Back Focal Length |
8.43mm |
||||
|
Operation |
Manual Iris |
||||
|
Manual Focus |
|||||
|
Design Wavelength |
420-1000nm |
||||
|
Filter Thread |
M27×P0.5 |
||||
 |
|||||
UN-ALS502K01
Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4
AR Coated Sapphire Windows
Custom Truncated Doublet and Singlet Lenses
We offer an extensive custom truncated doublet lens service. With our 30 year heritage of experience in the industry means we can always find the right product and specification for you, whether you require exotic materials, or exceptionally tight tolerances, we are confident in our ability to supply to your complete satisfaction. The table below is a brief overview of our doublet lens and is not an exhaustive list. If your individual requirements are not met, then please contact our technical sales team who will be happy to advise.es and is n’t an exhaustive list. If your individual requirements are not met, then please contact our technical sales team who will be happy to advise.
Typical Specifications:
Typical materials: Flint (N/F2) and Crown (BK7)
Flint (SF6) and Crown (N-LAK22)
UV & IR materials on request
Diameter: 3mm to 200mm+
Focal length: 3mm to 1000mm+
Centration: < 3 arcseconds
Surface figure: < 0.1 fringe
Surface quality: < 10/5 Scratch/dig
Coating options: Single layer and BBAR coatings for UV/VIS/NIR with R.avg.<0.25%
More information on the achievable specifications for your individual application can be found by contacting our technical sales team.
IR Windows Zinc Selenide(ZnSe) Windows
UN-GSWIR1614C
|
Gemini Series SWIR Lens |
|||
|
Model |
UN-GSWIR1614C |
||
|
Focal length |
16mm |
|
|
|
Aperture |
F1.4 |
||
|
Image Format |
1″ |
||
|
Mount |
C |
||
|
Field Angle |
|
1″ |
|
|
D |
54° |
||
|
H |
43.8° |
||
|
V |
33.4° |
||
|
Optical Distortion |
<-0.6% |
||
|
M. O. D. |
0.3m |
||
|
Dimension |
Φ54*63.00mm |
||
|
Flange BFL |
17.526mm |
||
|
Back Focal Length |
13.72mm |
||
|
Resolution |
80lp/mm |
||
|
Operation |
Manual Iris |
||
|
Manual Focus |
|||
|
Design Wavelength |
900-1700nm |
||
|
Filter Thread |
M52x0.75 |
||
 |
|||
UN-TFA5028C-10MP
|
Taurus Series Compact FA Lens(10MP) |
|||||
|
Model |
UN-TFA5028C-10MP |
||||
|
Focal length |
50mm |
|
|||
|
Aperture |
F2.8-16 |
||||
|
Image Format |
2.3″ |
||||
|
Mount |
C |
||||
|
Field Angle D x H x V (°) |
|
2/3″ |
1/2″ |
1/3" |
|
|
D |
12.27° |
9.16° |
6.89° |
||
|
H |
10.08° |
7.34° |
5.51° |
||
|
V |
7.57° |
5.51° |
4.13° |
||
|
Optical Distortion |
0.094% y=5.5mm |
0.055% y=4.0mm |
0.025% y=3.0mm |
||
|
M. O. D. |
0.3m~∞ |
||||
|
Dimension |
Φ29*55.30mm |
||||
|
17.526mm |
|||||
|
Back Focal Length |
14.24mm |
||||
|
Operation |
Manual Iris |
||||
|
Manual Focus |
|||||
|
Design Wavelength |
420-1000nm |
||||
|
Filter Thread |
M27xP0.5 |
||||
 |
|||||
Positive Meniscus Lenses And Negative Meniscus Lenses
UN-TFA3520X-12MP
|
Taurus Series 4/3″ Format FA Lens(12MP) |
|||||
|
Model |
UN-TFA3520X-12MP |
||||
|
Focal length |
35mm |
|
|||
|
Aperture |
F2.0-F22 |
||||
|
Image Format |
4/3″(23mm) |
||||
|
Mount |
C |
||||
|
Field Angle D x H x V (°) |
|
4/3″ |
1″ |
1/2" |
|
|
D |
36.8° |
26.0° |
13.2° |
||
|
H |
29.7° |
20.8° |
10.6° |
||
|
V |
22.5° |
15.8° |
7.9° |
||
|
Optical Distortion |
-0.52%@ y=11.5mm |
-0.42%@ y=8.0mm |
-0.12%@ y=4.0mm |
||
|
M. O. D. |
0.2m |
||||
|
Dimension |
Φ48.5*64.3mm |
||||
|
Back Focal Length |
18mm |
||||
|
Design Wavelength |
420~1000nm |
||||
|
Operation |
Manual Iris |
||||
|
Manual Focus |
|||||
|
Filter Thread |
M46×P0.75 |
||||
|
Weight |
207g |
||||
|
Work Temperature |
-20℃～+60℃ |
||||
|
|
|||||
IR Windows Germanium Windows
