Machine Vision Lens

/

Taurus Series 20MP 1.1'' FA Lens

/UN-TFA5028L-20MP

UN-TFA5028L-20MP
UN-TFA5028L-20MP

UN-TFA5028L-20MP

· High relative illumination and high contrast

· Low distortion and excellent corner brightness

· High resolution

· Compatible with 1'' and 1.1'' 20MP camera

Inquiry now
  • description

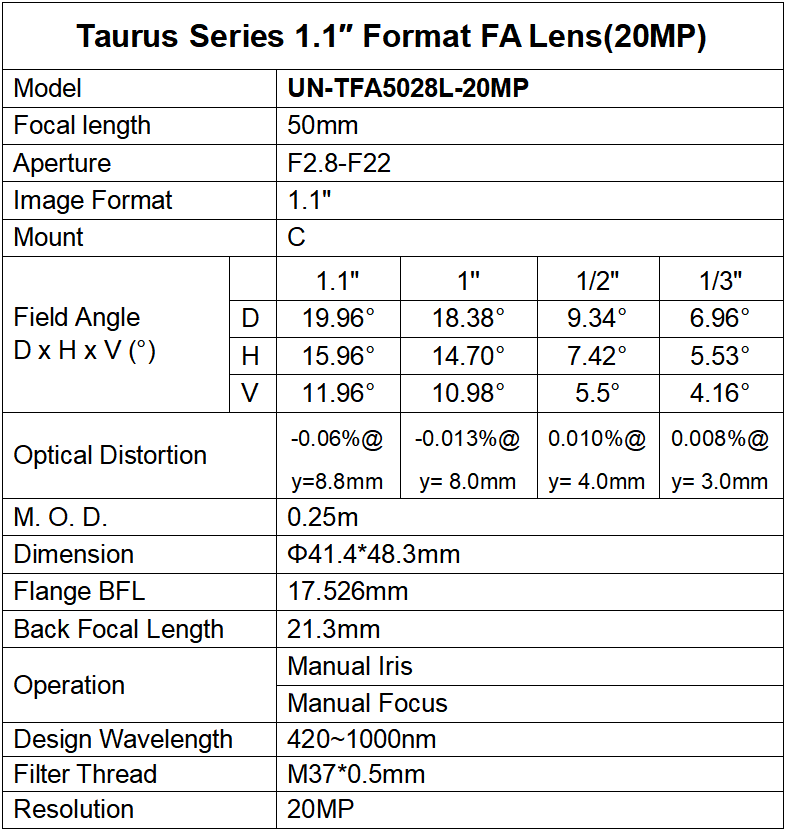

Taurus Series 1.1″ Format FA Lens(20MP)

Model

UN-TFA5028L-20MP

Focal length

50mm


Aperture

F2.8-F22

Image Format

1.1″

Mount

C



Field Angle

D x H x V (°)



1.1"

1"

1/2"

1/3"

D

19.96°

18.38°

9.34°

6.96°

H

15.96°

14.70°

7.42°

5.53°

V

11.96°

10.98°

5.5°

4.16°

Optical Distortion

-0.06%@

y=8.8mm

-0.013%@

y=8.0mm

0.010%@

y=4.0mm

0.008%@

y=3.0mm

M. O. D.

0.25m

Dimension

Φ41.4*48.3mm

Flange BFL

17.526mm

Back Focal Length

21.3mm

Operation

Manual Iris

Manual Focus

Design Wavelength

420~1000nm

Filter Thread

M37×P0.5
