Home /

Machine Vision Lens

/

Gemini Series SWIR Lens

/UN-GSWIR5014C

UN-GSWIR5014C
UN-GSWIR5014C

UN-GSWIR5014C

· Developed for 1" image format
· Wavelength: 900-1700nm
· Large Aperture, upto F1.4
· Compact and lightweight design
Inquiry now
  • description

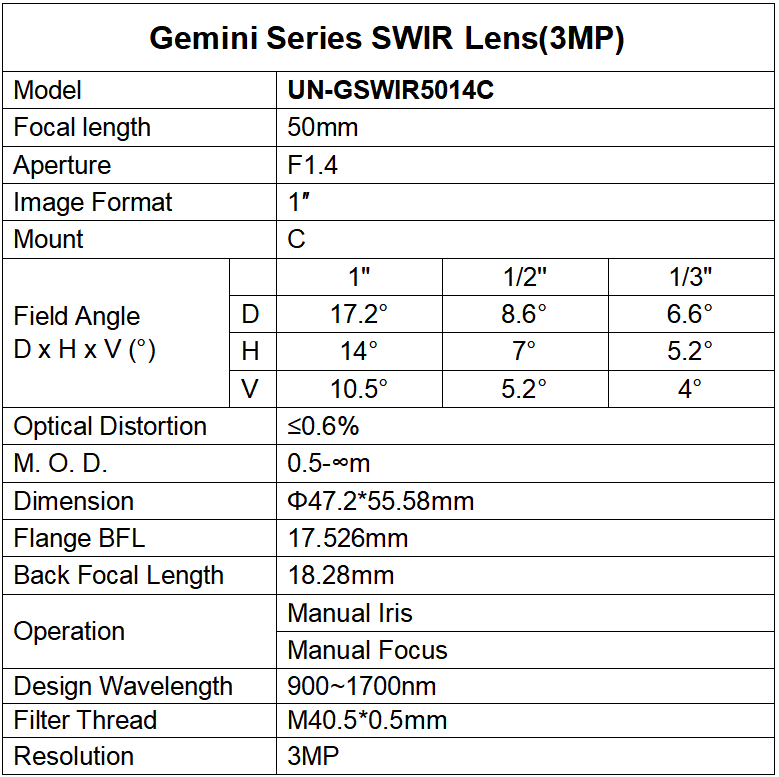

Gemini Series SWIR Lens

Model

UN-GSWIR5014C

Focal length

50mm

Aperture

F1.4

Image Format

1″

Mount

C

Field Angle



1″

D

18.4°

H

14.5°

V

11°

Optical Distortion

<-0.6%

M. O. D.

0.5m

Dimension

Φ47.2*55.58mm

Flange BFL

17.526mm

Back Focal Length

18.28mm

Resolution

80lp/mm

Operation

Manual Iris

Manual Focus

Design Wavelength

900-1700nm

Filter Thread

M40.5*0.5
