Machine Vision Lens

/

Gemini Series SWIR Lens

/UN-GSWIR2514C

UN-GSWIR2514C
UN-GSWIR2514C

UN-GSWIR2514C

Inquiry now
  • description

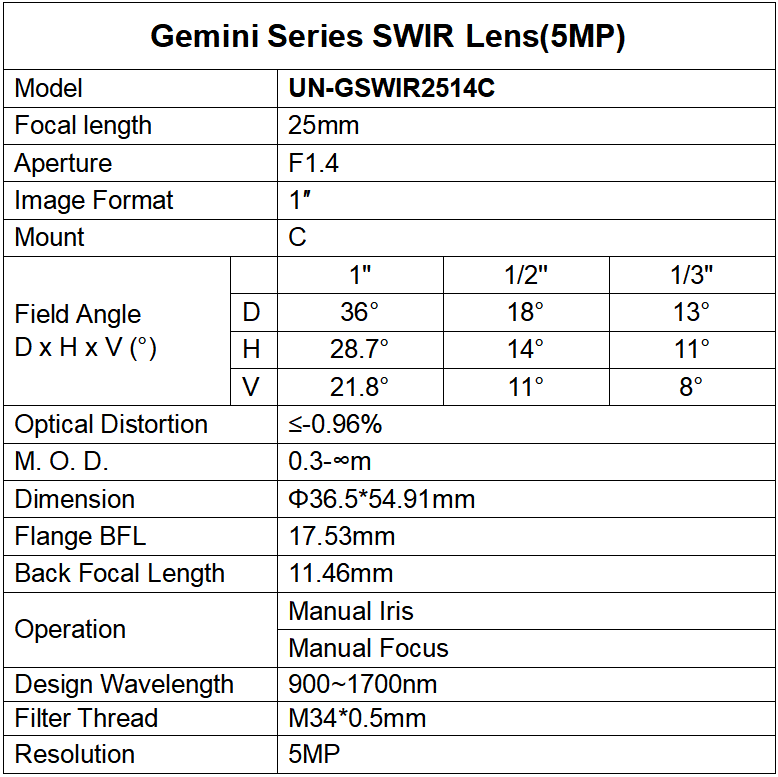

Gemini Series SWIR Lens

Model

UN-GSWIR2514C

Focal length

25mm

Aperture

F1.4

Image Format

1″

Mount

C

Field Angle



1″

D

61.93°

H

52.21°

V

40.1°

Optical Distortion

<-0.96%

M. O. D.

0.3m

Dimension

Φ36.5*54.91mm

Flange BFL

17.526mm

Back Focal Length

11.51mm

Resolution

80lp/mm

Operation

Manual Iris

Manual Focus

Design Wavelength

900-1700nm

Filter Thread

M34*0.5
