Machine Vision Lens Suppliers,Taurus Series 12MP 4/3'' FA Lens For Sale

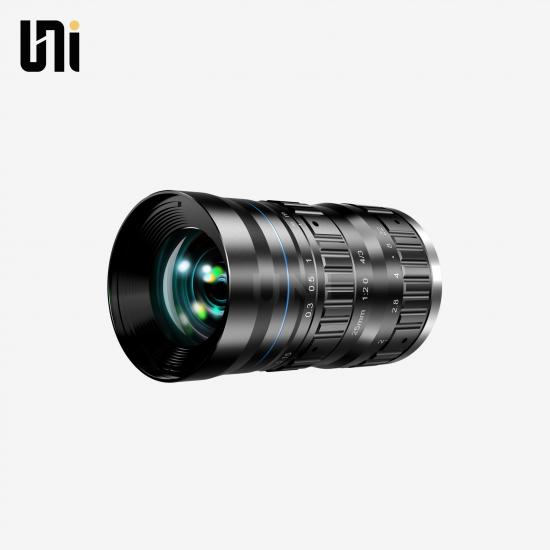

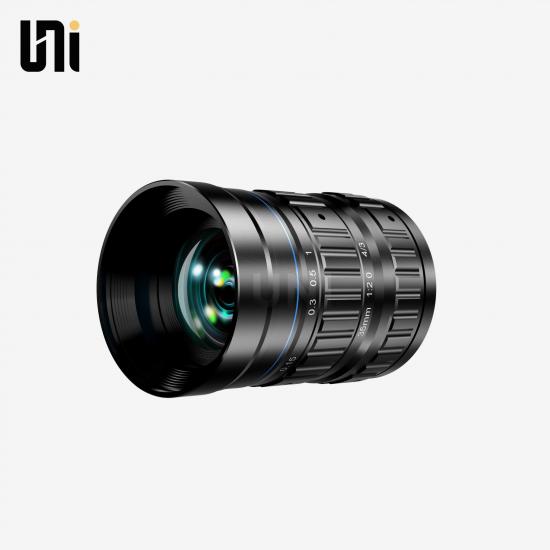

Taurus Series 12MP 4/3'' FA Lens

UN-TFA1220X-12MP
Taurus Series 4/3″Format FA Lens(12MP) Model UN-TFA1220X-12MP Focal length 12mm Aperture F2.0-F22 Image Format 4/3″(23mm) Mount C Field Angle D x H x V (°) 4/3″ 1″ 1/2" D 89.1° 69.0° 37.4° H 75.6° 57.36° 30.2° V 61.2° 44.3° 22.7° Optical Distortion -2.05%@ y=11.5mm -1.73%@ y=8.0mm -1.01%@ y=4.0mm M. O. D. 0.15m Dimension Φ79.8*83.8mm Back Focal Length 18.8mm Operation Manual Iris Manual Focus Design Wavelength 420~1000nm Filter Thread M77.0×P0.75 Weight 438g Work Temperature -20℃～+60℃
View More
UN-TFA1620X-12MP
Taurus Series 4/3″Format FA Lens(12MP) Model UN-TFA1620X-12MP Focal length 16mm Aperture F2.0-F22 Image Format 4/3″(23mm) Mount C Field Angle D x H x V (°) 4/3″ 1″ 1/2" D 73.0° 54.2° 28.3° H 61.0° 44.3° 22.7° V 47.3° 33.6° 17.1° Optical Distortion -1.93%@ y=11.5mm -1.82%@ y=8.0mm -0.55%@ y=4.0mm M. O. D. 0.1m Dimension Φ60.2*85.9mm Back Focal Length 21mm Design Wavelength 420~1000nm Operation Manual Iris Manual Focus Filter Thread M58.0×P0.75 Weight 339g Work Temperature -20℃～+60℃
View More
UN-TFA2518X-12MP
Taurus Series 4/3″ Format FA Lens(12MP) Model UN-TFA2518X-12MP Focal length 25mm Aperture F2.0-F22 Image Format 4/3″(23mm) Mount C Field Angle D x H x V (°) 4/3″ 1″ 1/2" D 49.8° 35.8° 18.3° H 40.6° 28.9° 14.6° V 31.1° 21.8° 11.1° Optical Distortion -0.64%@ y=11.5mm -0.48%@ y=8.0mm -0.15%@ y=4.0mm M. O. D. 0.15m Dimension Φ47.3*82.7mm Back Focal Length 22mm Design Wavelength 420~1000nm Operation Manual Iris Manual Focus Filter Thread M46.0×P0.75 Weight 248g Work Temperature -20℃～+60℃
View More
UN-TFA3520X-12MP
Taurus Series 4/3″ Format FA Lens(12MP) Model UN-TFA3520X-12MP Focal length 35mm Aperture F2.0-F22 Image Format 4/3″(23mm) Mount C Field Angle D x H x V (°) 4/3″ 1″ 1/2" D 36.8° 26.0° 13.2° H 29.7° 20.8° 10.6° V 22.5° 15.8° 7.9° Optical Distortion -0.52%@ y=11.5mm -0.42%@ y=8.0mm -0.12%@ y=4.0mm M. O. D. 0.2m Dimension Φ48.5*64.3mm Back Focal Length 18mm Design Wavelength 420~1000nm Operation Manual Iris Manual Focus Filter Thread M46×P0.75 Weight 207g Work Temperature -20℃～+60℃
View More
UN-TFA5020X-12MP
Taurus Series 4/3″ Format FA Lens(12MP) Model UN-TFA5020X-12MP Focal length 50mm Aperture F2.0-F22 Image Format 4/3″(23mm) Mount C Field Angle D x H x V (°) 4/3″ 1″ 1/2" D 26.0° 18.3° 9.2° H 21.0° 14.7° 7.3° V 15.8° 11.1° 5.6° Optical Distortion -0.13%@ y=11.5mm -0.05%@ y=8.0mm -0.01%@ y=4.0mm M. O. D. 0.3m Dimension Φ48*67mm Back Focal Length 20mm Design Wavelength 420~1000nm Operation Manual Iris Manual Focus Filter Thread M46×P0.75 Weight 219g Work Temperature -20℃～+60℃
View More
