Line Scan Lens UN-ALS502K

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 30mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 40mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· Developed for 1/1.8" image format
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.

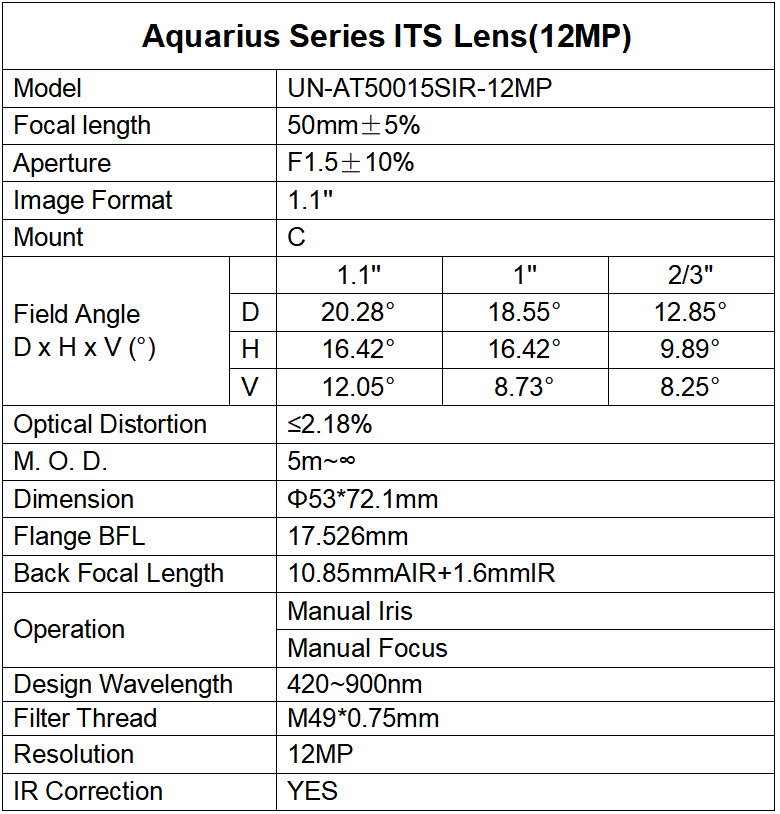

For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.

· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· High stability and low distortion ensure measurement accuracy

For high-precision machine vision applications, widely covering dimensional inspection and surface defect detection for consumer electronics, food and pharmaceutical packaging detection, printing & label inspection, robotic vision guidance and precise positioning, as well as in-line dimensional measurement of automotive components in typical industrial scenarios.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 1" and 1.1'' 20MP camera

Product information: Custom designs are available upon request.
