Line Scan Lens UN-ALS858K

For precision optical film inspection, lithium battery copper foil, aluminum foil, separator and pole piece defect detection, FPD panel glass and polarizer inspection, photovoltaic glass and silicon wafer surface screening, high-grade printing and flexible packaging quality inspection, ceramic substrate and metal strip precision appearance detection.

· Developed for 44mm big frame sensor
· High relative illumination
· Lens for 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For lithium battery copper foil & pole piece micro-defect detection, PCB inspection, photovoltaic silicon wafer surface screening, precision metal strip flaw detection, advanced cigarette and pharmaceutical printing inspection as well as ceramic electronic substrate detection.

· Developed for 61mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

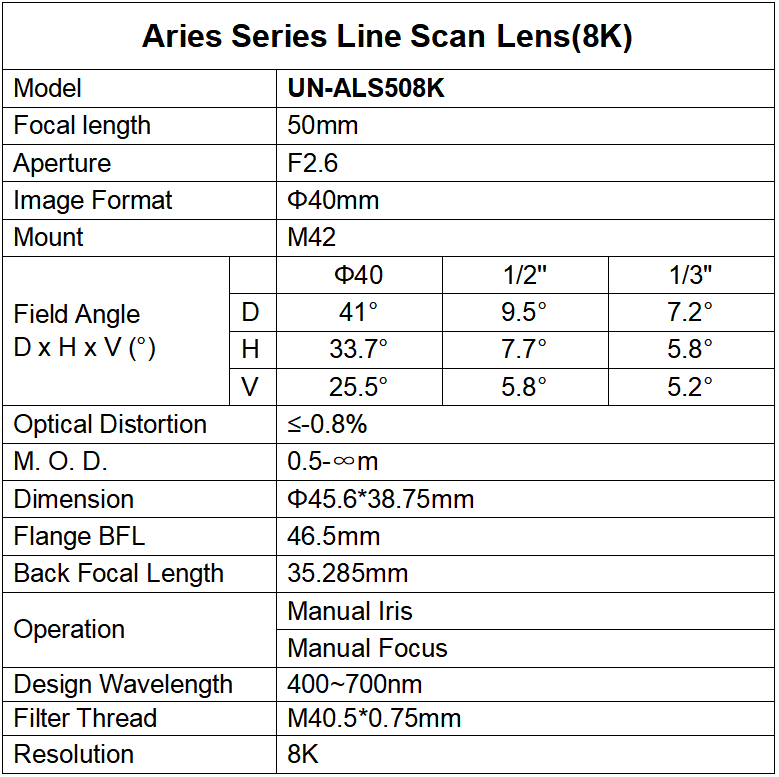

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 40mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

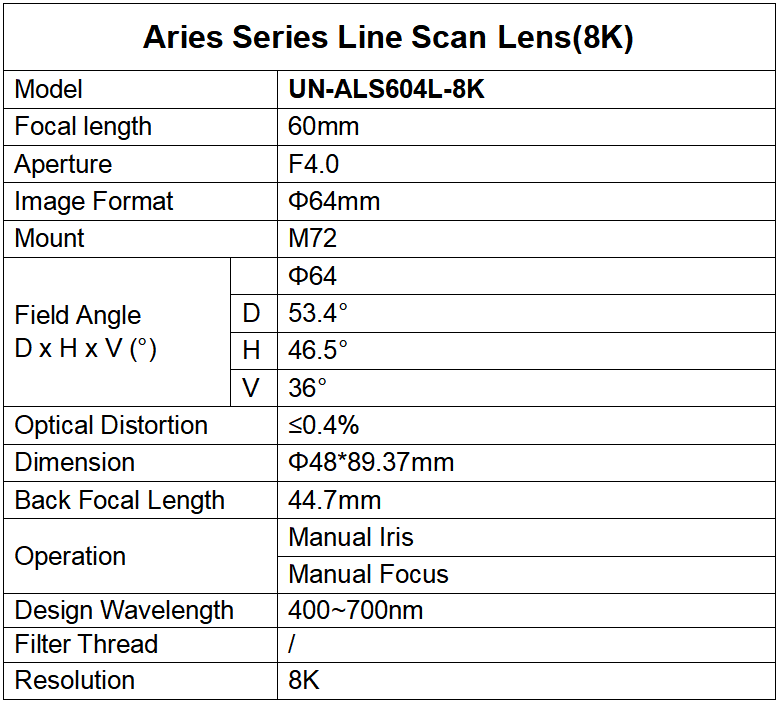

For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, and surface defect detection of metal sheets and coils.

· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, surface defect detection of metal sheets and coils, flat panel display & glass defect inspection, and dimension measurement of various rolled materials.

· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For Consumer Electronics Inspection, Semiconductor & PCB Inspection, AOI, Railway Inspection, etc.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 4/3" 45MP camera

Product information: Custom designs are available upon request.

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· Developed for 2/3" image format
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.

For semiconductor wafer internal defect inspection, solar cell & glass surface testing, plastic & waste material sorting, food and agricultural non-destructive grading, pharmaceutical packaging inspection, multi-spectral laboratory imaging, high-speed industrial surface inspection, electronic police license plate capture.

· High relative illumination and high contrast

· High resolution

· Compatible with 1" and 1.1" 20MP camera

For high-precision machine vision applications, broadly covering dimensional inspection and surface defect detection in consumer electronics, robotic vision guidance and positioning, as well as automotive component in-line measurement, and intelligent logistics & sorting systems and so on.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 1" and 1.1" 12MP camera

Product information: Custom designs are available upon request.

For hygiene product inspection, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 30mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.
