Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4· High relative illumination
· Lens for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge
Product Features:
1. Compatible for 30mm Large Format Sensor
2. Large Aperture with F2.4
3. High Relative Illumination
4. Compatible for 2K-4K line scan camera
5. Ultra-low Distortion, low vertical axis chromatic aberration
6. Vibration-resistant and high stability.
Product information: Custom designs are available upon request.
Download the Datasheet of UN-ALS50TM42
|

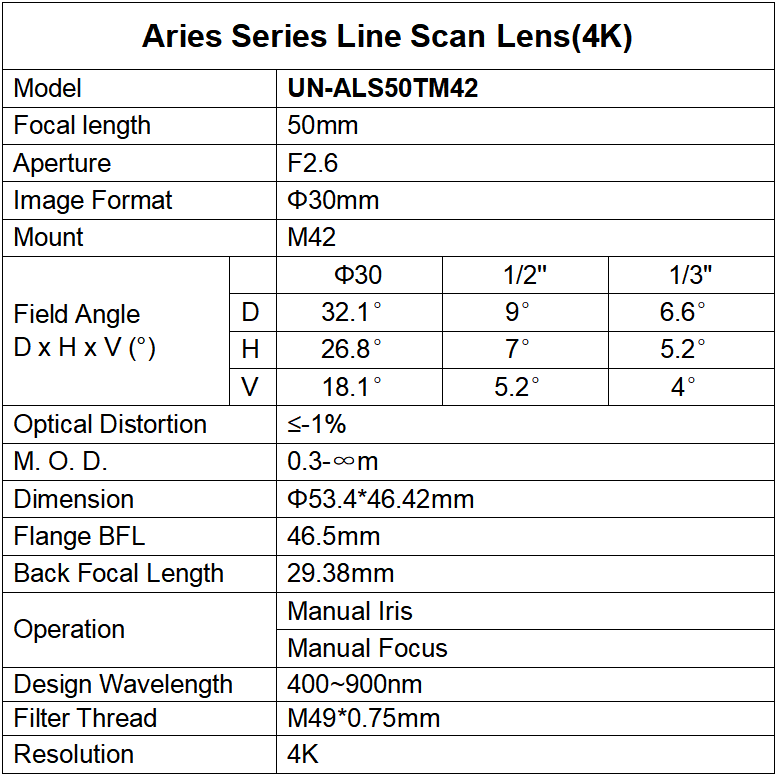

Aries Series Line Scan Lens(4K) |
||
|
Model |
UN-ALS50TM42 |
|
|
Focal length |
50mm |
|
|
Aperture |
F2.4 |
|
|
Image Format |
30 |
|
|
Mount |
M42 |
|
|
Field Angle |
32.1°*26.8°*18.1° |
|
|
Optical Distortion |
<1% |
|
|
M. O. D. |
0.4m |
|
|
Dimension |
Φ49*46.42mm |
|
|
Flange BFL |
46.5mm |
|
|
Back Focal Length |
29.38mm |
|
|
Operation |
Manual Iris |
|
|
Manual Focus |
||
|
Filter Thread |
M49*0.75 |
|
|
|
||
Hot Tags :
Prev :
UN-ALS502K01Next :
UN-ALS50J01
UN-ALS354K
Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4
UN-ALS50J01
Product Features:
1. Compatible for 30mm Large Format Sensor
2. Large Aperture with F2.4
3.High Relative Illumination
4. Compatible for 2K-4K line scan camera
5. Ultra-low Distortion, low vertical axis chromatic aberration
6. Vibration-resistant and high stability.
Product information:Custom designs are available upon request.
Download the Datasheet of UN-ALS50J01
UN-ALS502K
Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4
UN-ALS502K01
Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4
UN-ALS50J01
Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4
UN-ALS508K01
Product Features:
· Developed for 32mm big frame sensor
· Large Aperture, upto F2.4
UN-ALS858K
|
Aries Series Line Scan Lens(8K) |
||
|
Model |
UN-ALS858K |
|
|
Focal length |
85mm |
|
|
Aperture |
F2.8 |
|
|
Image Format |
38 |
|
|
Mount |
M42 |
|
|
Field Angle |
23.1°*16.8°*9.1° |
|
|
Optical Distortion |
<-0.15% |
|
|
M. O. D. |
0.6m |
|
|
Dimension |
Φ58.5*59.87mm |
|
|
Flange BFL |
46.5mm |
|
|
Back Focal Length |
23.93mm |
|
|
Operation |
Manual Iris |
|
|
Manual Focus |
||
|
Filter Thread |
M55*0.75 |
|
 |
||
UN-TFA1228C-10MP
|
Taurus Series Compact FA Lens(10MP) |
|||||
|
Model |
UN-TFA1228C-10MP |
||||
|
Focal length |
12mm |
|
|||
|
Aperture |
F2.8-16 |
||||
|
Image Format |
2/3"(11mm) |
||||
|
Mount |
C |
||||
|
Field Angle D x H x V (°) |
|
2/3″ |
1/2″ |
1/3" |
|
|
D |
49.2° |
36.9° |
28.1° |
||
|
H |
40.3° |
29.9° |
22.7° |
||
|
V |
30.8° |
22.7° |
17.1° |
||
|
Optical Distortion |
0.037% y=5.5mm |
-0.17% y=4.0mm |
-0.15% y=4.0mm |
||
|
M. O. D. |
0.15m~∞ |
||||
|
Dimension |
Φ29*41.5mm |
||||
|
Flange BFL |
17.526mm |
||||
|
Back Focal Length |
8.43mm |
||||
|
Operation |
Manual Iris |
||||
|
Manual Focus |
|||||
|
Design Wavelength |
420-1000nm |
||||
|
Filter Thread |
M27×P0.5 |
||||
 |
|||||
UN-TFA2528L-20MP
· High relative illumination and high contrast
· Low distortion and excellent corner brightness
· High resolution
· Compatible with 1'' and 1.1'' 20MP camera
