UN-TFA08516C

Product Features:


1. Compatible for 2/3'' Format Sensor

2. Ultra-compact Design

3. Ultra Low Distortion

4. High Relative Illumination

5. High Cost Performance

6. Supply with Focus and Iris locking screws.


Product information: Custom designs are available upon request.

Download the datasheet of UN-TFA08516C


Inquiry now
  • description

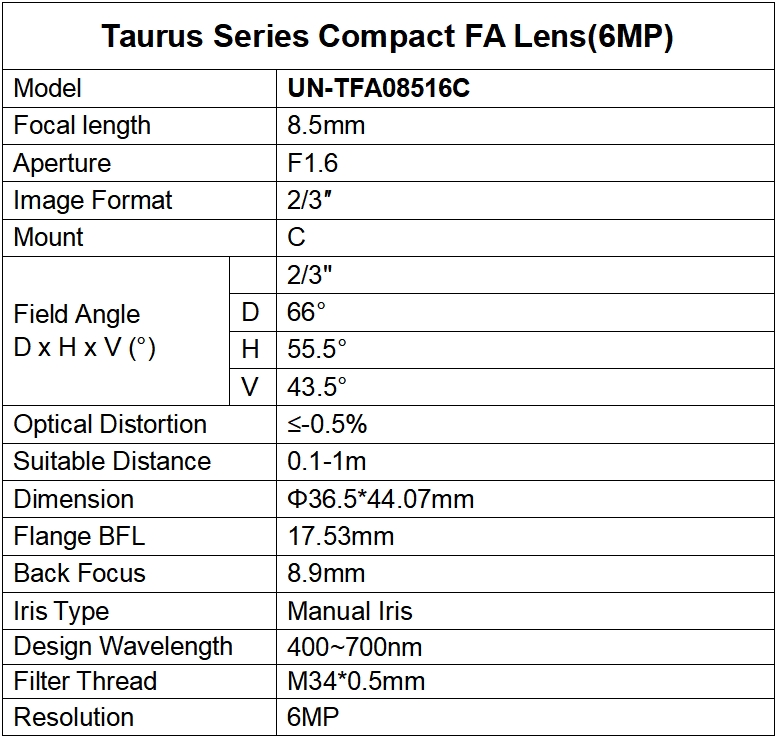

Taurus Series Compact FA Lens(6MP)

Model

UN-TFA08516C

Focal length

8.5mm



Aperture

F1.6

Image Format

2/3

Mount

C



Field Angle

D x H x V (°)



2/3

1/2

1/3"

D

65.81°

50.40°

38.88°

H

54.74°

41.26°

31.53°

V

42.44°

31.53°

23.91°

Optical Distortion

<-0.5%

M. O. D.

0.1m

Dimension

Φ32.5*45.61mm

Flange BFL

17.526mm

Back Focal Length

11.74mm

Operation

Manual  Iris

Manual  Focus

Design Wavelength

400-900nm

Filter Thread

M34*0.5
