UN-TFA1218C

Product Features:


1. Compatible for 2/3'' Format Sensor

2. Ultra-compact Design

3. Ultra Low Distortion

4. High Relative Illumination

5. High Cost Performance

6. Supply with Focus and Iris locking screws.


Product information: Custom designs are available upon request.

Download the datasheet of UN-TFA1218C


Inquiry now
  • description

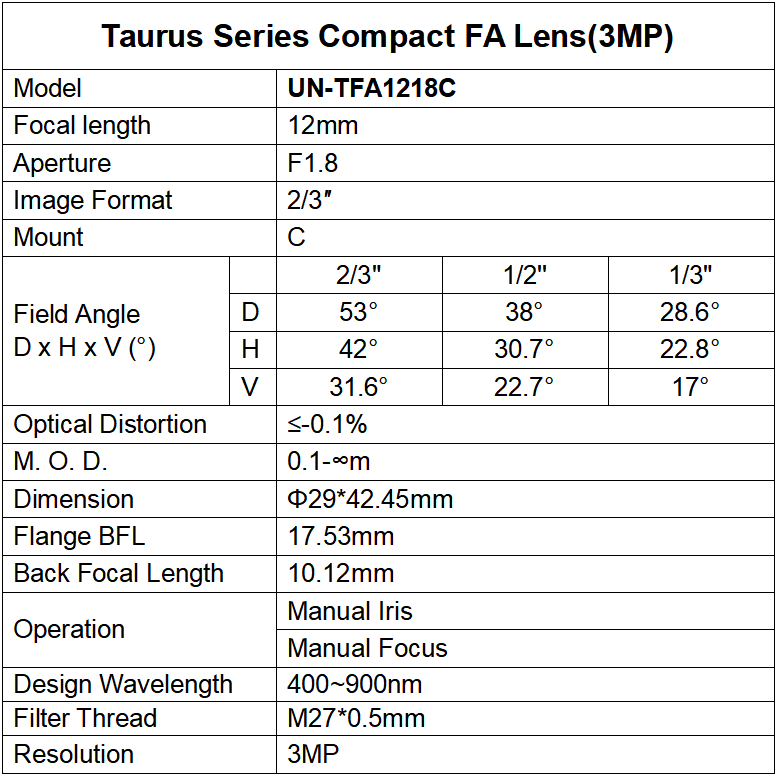

Taurus Series Compact FA Lens(3MP)

Model

UN-TFA1218C

Focal length

12mm



Aperture

F1.8

Image Format

2/3″

Mount

C



Field Angle

D x H x V (°)



2/3″

1/2″

1/3"

D

49.25°

36.87°

28.07°

H

40.27°

29.86°

22.62°

V

30.75°

22.62°

17.06°

Optical Distortion

<0.1%

M. O. D.

0.1m

Dimension

φ29*42.45mm

Flange BFL

17.526mm

Back Focal Length

10.12mm

Operation

Manual  Iris

Manual  Focus

Design Wavelength

400-900nm

Filter Thread

M27*0.5
