Laser Grade Line Mirrors

Laser mirrors are fabricated with specialized coatings, which will offer high damage thresholds.
  • product origin:

    China
  • shipping port:

    Fuzhou China
  • lead time:

    4 working weeks
  • payment:

    T/T prepayment, Western Union
Inquiry now
  • description

1、What are Laser Mirrors?


Laser mirrors are fabricated with specialized coatings, which will offer high damage thresholds.



2、What are Laser Mirrors used for?


Our mirrors typically used in Nd: YAG, Ar-Ion, Kr-Ion, excimer, and CO2 lasers systems, it well suited for use with a range of high-powered pulsed laser sources.



Key Feasures:

High Transmission

High Reflection

High Damage Threshold

Excellent Film Density

Excellent Environmental Stability

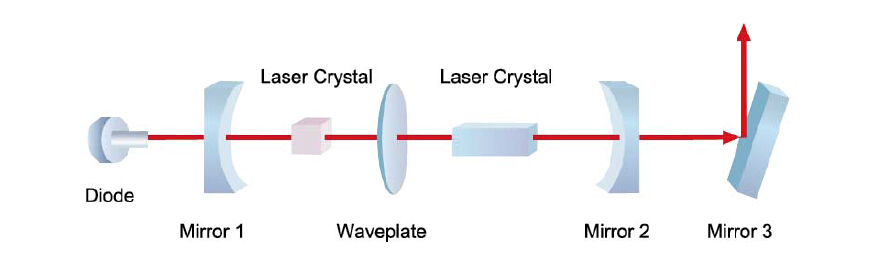

Laser Mirror


Typical Specifications:

Dimension: 4mm-80mm, round or square

Material: BK7 or Fused Silica

Surface quality: 10/5

Surface flatness:

Parallelism: 30''

Roughness: 3A


Wavelength Type Typical Wavelength(nm) Coating Capability Main Application
UV 351,355 R>99.8% Laser Welding
Visible 457,473,532,633,671 R>99.9%, R>99.9% Laser Engraving
IR 914,1064,1123,1310,1342,1550 R>99.9%, R>99.9% Laser Marking
