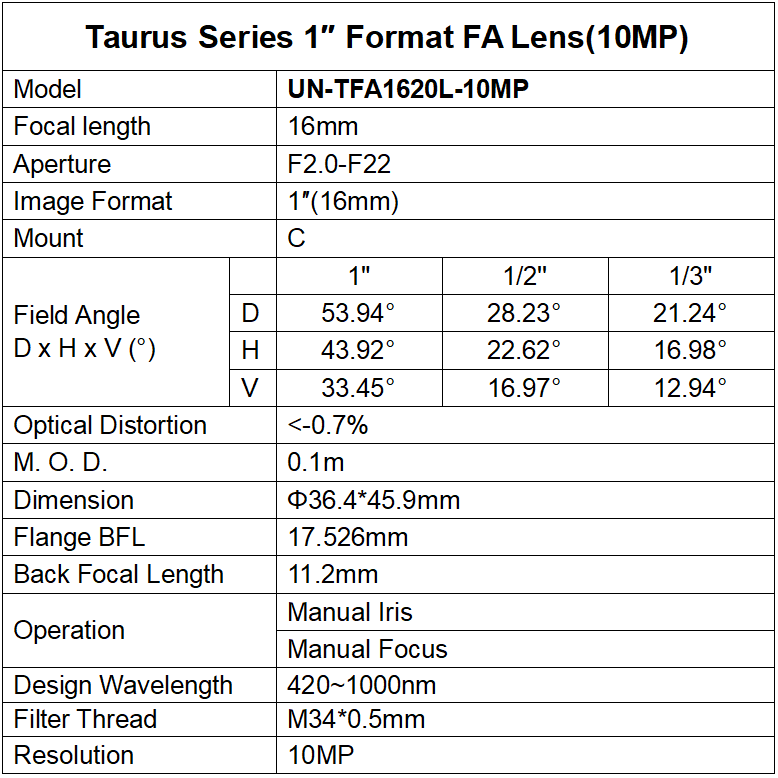

FA Lens UN-TFA1620L-10MP

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· High image contrast
· High brightness uniformity
· Suitable for 2.4u sensor

· Resolution up to 10MP

· Compact, lightweight and durable

Product information: Custom designs are available upon request.

For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.

· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· High stability and low distortion ensure measurement accuracy

For sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

Product information: Custom designs are available upon request.

· Developed for 32mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

1. Silicon (Si)

Silicon (Si) is grown by Czochralski pulling techniques (CZ) and contains some oxygen that causes an absorption band at 9 microns.To avoid this, material can be prepared by a Float-Zone (FZ) process. Optical silicon is generally lightly doped (5 to 40 ohm cm) for best transmission above 10 microns, and doping is usually boron (P-type) and phosphorus (N-type). After doping silicon has a further pass band: 30 to 100 microns which is effective only in very high resistivity uncompensated material.

CZ Silicon is commonly used as substrate material for infrared reflectors and windows in the 1.5-8 micron region. The strong absorption band at 9 microns makes it unsuitable for CO2 laser transmission applications, but it is frequently used for laser mirrors because of its high thermal conductivity and low density. Application as window, lens in the 1.5 - 8 um region; Mirror for CO2 laser and spectrometer applications.


ZnS MultiSpectral Under intense heat and pressure, defects within the crystalline lattice are virtually eliminated, leaving a water-clear material with minimal scatter and high transmission characteristics from 0.4 to 12 microns. This material is particularly well suited for high-performance common aperture systems that must perform across a broad wavelength spectrum.

Specifications:

Material: ZnS MultiSpectral
Diameter Tolerance: --------------------- +0.0, -0.1mm
Thickness Tolerance: -------------------- ±0.1mm
Clear Aperture: ---------------------------->85%
Parallelism: -----------------------------------3 arc minute
Surface Quality: ----------------------------80-50 scratch and dig
Wavefront Distortion: -------------------- λ /2 per 25mm @633mm
Bevel: -----------------------------------------Protective  (<0.2mm x 45° )
Coating: -------------------------------------- Optional （Uncoated, AR Coating, etc.）

3. ZnSe material

ZnSe is a preferred material for lenses, windows, output couplers and beam expanders for its low absorptivity at infrared wavelengths and its visible transmission. For high-power applications, it’s critical that the material bulk absorption and internal defect structure be carefully controlled, that minimum-damage polishing technology be employed, and the highest quality optical thin-film coatings are used. The material absorption is verified by CO2 laser vacuum calorimetry. Our quality assurance department provides testing and specific optics certification on request.

ZnSe is non-hygroscopic and chemically stable, unless treated with strong acids. It’s safe to use in most industrial field, and laboratory environments.

For high-precision machine vision applications, broadly covering dimensional inspection and surface defect detection in consumer electronics, robotic vision guidance and positioning, as well as automotive component in-line measurement, and intelligent logistics & sorting systems and so on.

· High image contrast
· High brightness uniformity
· Suitable for 2.4u sensor

· Resolution up to 10MP

· Compact, lightweight and durable

Product information: Custom designs are available upon request.

For high-end PCB AOI inspection, Mini/Micro LED panel micro-defect detection, photovoltaic silicon wafer EL hidden crack inspection, narrow precision metal strip flaw detection, luxury printing anti-counterfeit texture inspection, electronic ceramic substrate microscopic inspection and high-precision linear dimension measurement of tiny electronic components.

· Developed for 66mm big frame sensor
· Low distortion
· Compatible for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

Match with Teledyne camera, for Banknote Inspection, Printing Inspection

· Ultra High Resolution
· Large Format Lens
