UN-TFA3518C

Product Features:

1. Compatible for 2/3'' Format Sensor

2. Ultra-compact Design

3. Ultra Low Distortion

4. High Relative Illumination

5. High Cost Performance

6. Supply with Focus and Iris locking screws.

Product information: Custom designs are available upon request.

Download the datasheet of UN-TFA3518C

Inquiry now

description

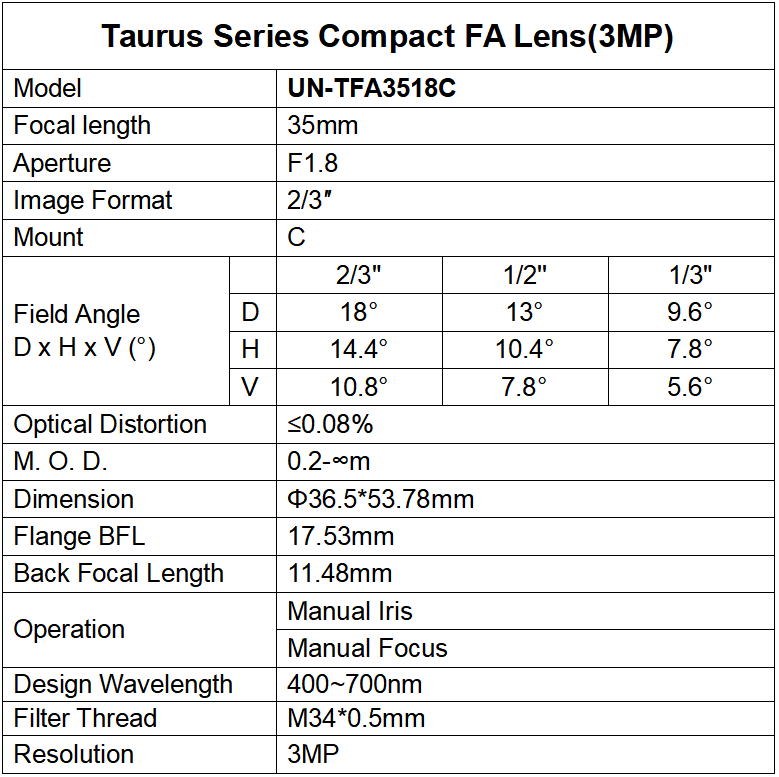

Taurus Series Compact FA Lens(3MP)
Model		UN-TFA3518C
Focal length		35mm
Aperture		F1.8
Image Format		2/3″
Mount		C
Field Angle D x H x V (°)		2/3″	1/2″	1/3"
	D	17.86°	13.04°	9.80°
	H	14.33°	10.45°	7.85°
	V	10.77°	7.85°	5.89°
Optical Distortion		<-0.08%
M. O. D.		0.1m
Dimension		Φ36.5*53.78mm
Flange BFL		17.526mm
Back Focal Length		11.482mm
Operation		Manual Iris
		Manual Focus
Design Wavelength		400-900nm
Filter Thread		M34*0.5
