UN-TFA5020C

Product Features:


1. Compatible for 2/3'' Format Sensor

2. Ultra-compact Design

3. Ultra Low Distortion

4. High Relative Illumination

5. High Cost Performance

6. Supply with Focus and Iris locking screws.


Product information: Custom designs are available upon request.

Download the datasheet of UN-TFA5020C


Inquiry now
  • description

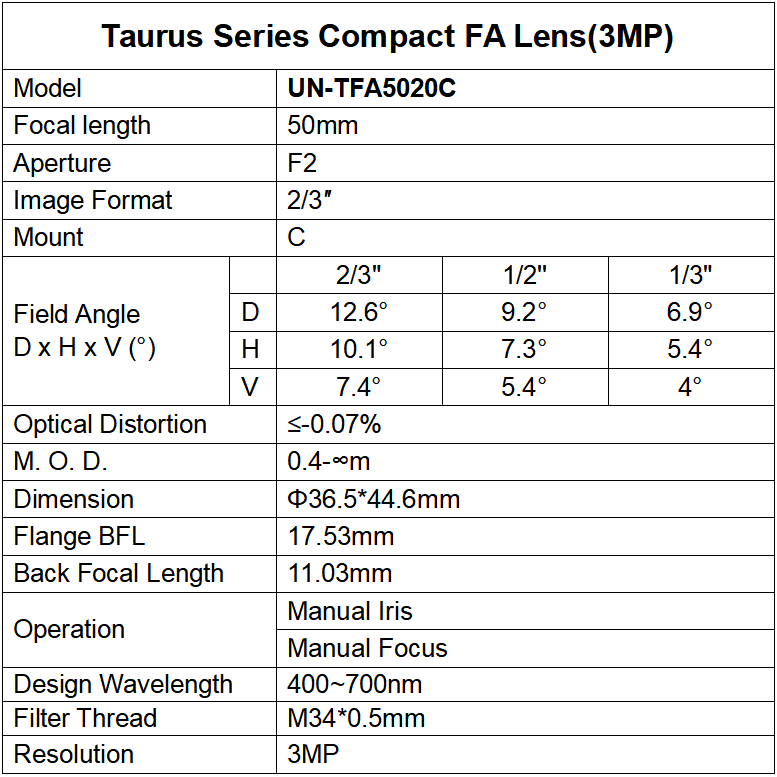

Taurus Series Compact FA Lens(3MP)

Model

UN-TFA5020C

Focal length

50mm

Aperture

F2.0

Image Format

2/3

Mount

C

Field Angle
D x H x V (°)



2/3"

1/2''

1/3"

D

12.55°

9.15°

6.87°

H

10.06°

7.32°

5.50°

V

7.55°

5.50°

4.12°

Optical Distortion

<-0.07%

M. O. D.

0.2m

Dimension

Φ36.5*61.61mm

Flange BFL

17.526mm

Back Focal Length

10.79mm

Operation

Manual Iris

Manual Focus

Design Wavelength

400~900nm

Filter Thread

M34*0.5
