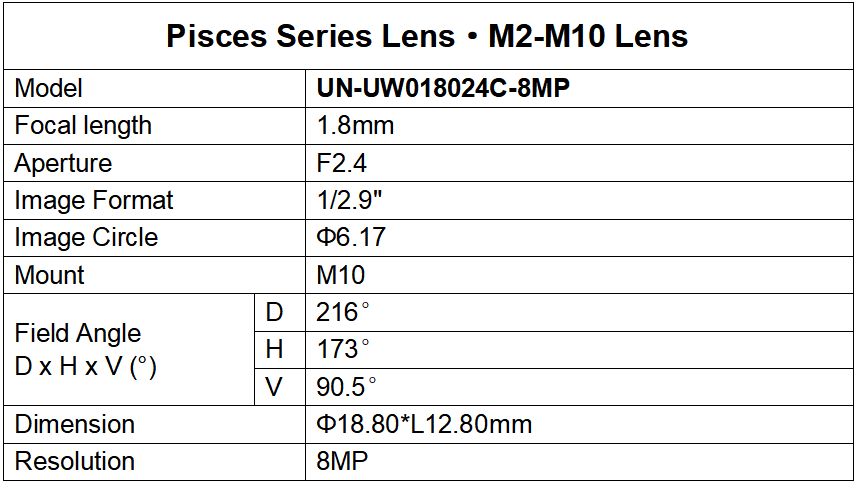

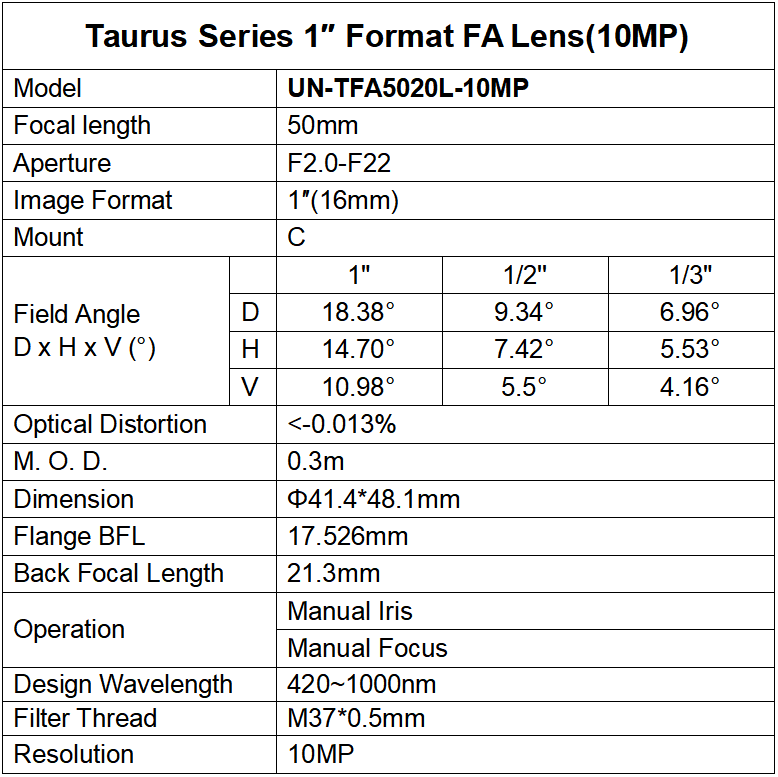

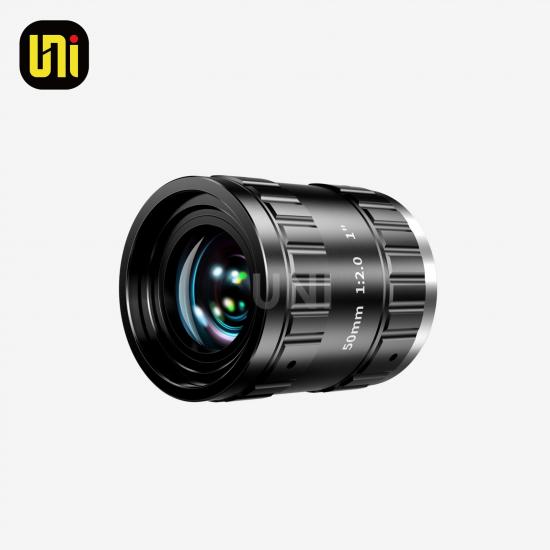

FA Lens UN-TFA5020L-10MP

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· High image contrast
· High brightness uniformity
· Suitable for 2.4u sensor

· Resolution up to 10MP

· Compact, lightweight and durable

Product information: Custom designs are available upon request.

For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.

· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· High stability and low distortion ensure measurement accuracy

For semiconductor wafer internal defect inspection, solar cell & glass surface testing, plastic & waste material sorting, food and agricultural non-destructive grading, pharmaceutical packaging inspection, multi-spectral laboratory imaging, high-speed industrial surface inspection, electronic police license plate capture.

· High relative illumination and high contrast

· High resolution

· Compatible with 1" and 1.1" 20MP camera

1、What are laser windows?

Laser Protect Windows(Laser protective glass, protective filters or welding protective windows) are used to save for the high cost of laser optics.

2、What are laser windows used for?

These windows are normally used in applications like laser cutting, laser welding machine, they are used for avoiding the high-precision laser optics damage by material splashes.

3、The key features of UNI Optics' Laser Windows

High Transmission

High Damage Threshold

Low Scatter

Low Absorption

Excellent Film Density

Excellent Environmental Stability

Typical Specifications:

Dimension: 4mm-80mm, round or square

Material: BK7, Fused Silica, ZnSe...etc

Surface quality: 10/5

Surface flatness: Lambda/10@632.8nm

Parallelism: 30’’

Roughness: 3A

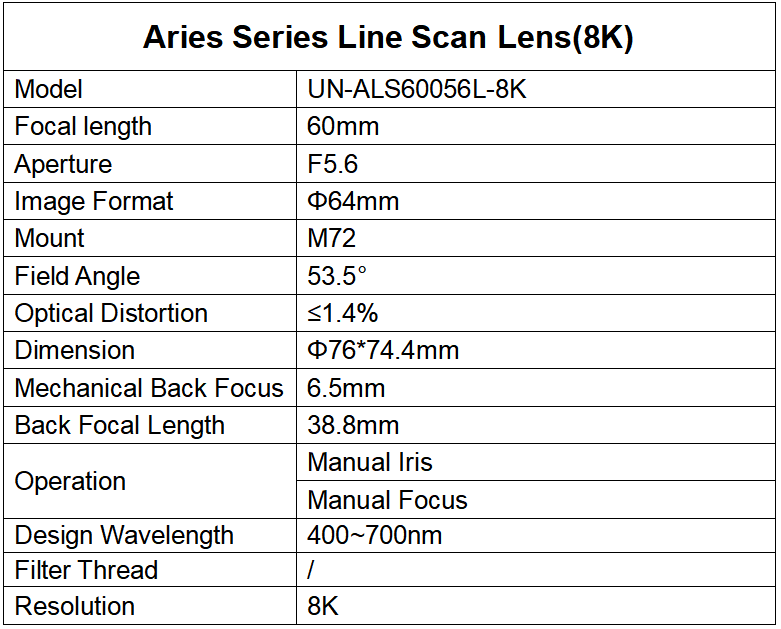

For automotive polarizer & Mini LED backlight substrate testing, medium-grade fine-line FPC & IC carrier board AOI detection, solar cell EL hidden crack screening, narrow precision cold-rolled metal strip flaw inspection, pharmaceutical packaging & medium anti-counterfeit printing quality control and electronic ceramic substrate microscopic inspection.

· Developed for 32mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For Semiconductor Wafer Inspection, Biomedical Imaging, Logistics Package Sorting, Wildfire Detection & Ember Monitoring, etc.

· Developed for 1.1" image format
· Wavelength: 800-1700nm
· Large Aperture, up to F2.0
· Compact and lightweight design
