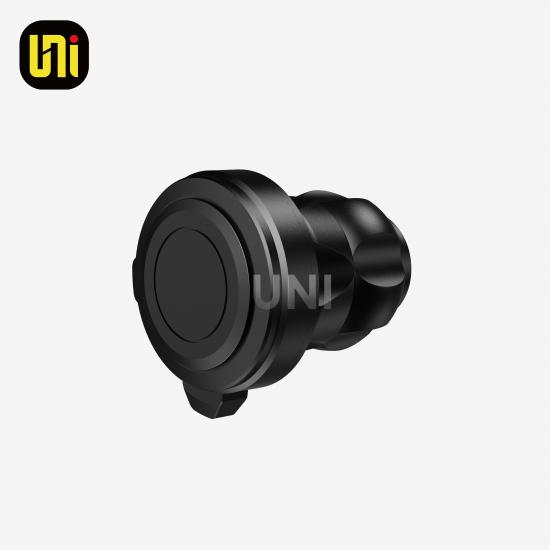

Endoscope Video Adaptor UN-ZL14323CIR-8MP

For semiconductor wafer internal defect inspection, solar cell & glass surface testing, plastic & waste material sorting, food and agricultural non-destructive grading, pharmaceutical packaging inspection, multi-spectral laboratory imaging, high-speed industrial surface inspection, electronic police license plate capture.

· High relative illumination and high contrast

· High resolution

· Compatible with 1" and 1.1" 20MP camera

For high-precision machine vision applications, widely covering dimensional inspection and surface defect detection for consumer electronics, food and pharmaceutical packaging detection, printing & label inspection, robotic vision guidance and precise positioning, as well as in-line dimensional measurement of automotive components in typical industrial scenarios.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 4/3" 12MP camera

Product information: Custom designs are available upon request.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

Product information: Custom designs are available upon request.

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· Developed for 2/3" image format
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.

1、What Metallic Coated types can Uni-Optics supply?

Uni-Optics mainly offers four coating types, including:

1) UV Enhanced Aluminum : Ravg > 85% from 250nm to 400nm

2) Protected Aluminum: Ravg > 87% from 400nm to 800nm

3) Protected Silver: Ravg > 95% from 400nm to 20um

4) Protected Gold: Ravg > 98% from 650nm to 16um

2、What are the features of Metallic coated mirror?

Metallic coated mirror have many key features below:

Wide spectral range

Not sensitive to the incidence angle and polarization state

Low cost

Non-durable

Relatively low reflectance

Low laser damage threshold

3、What UNI Optics can do for you?

Common Specifications:

Substrate Materials: N-BK7, Fused silica, Pyrex；Float glass

Dimensional tolerance: +/-0.1mm

Surface quality:  60-40

Parallelism:  3’

Flatness: λ/4 per 25mm@633nm

Bevel: Protective

One surface: Polished and Metallic coating

The other surface: Fine ground

Note: Aluminum is the most widely used metal reflection film, from near UV to near IR, have high reflectivity, and with low cost. Silver has higher reflectivity in the visible and near infrared wavelength than the aluminum film, but the silver in the air will be rapid oxidation, color darkening, makes the film performance and firmness declined rapidly. Gold film has a good consistency with high reflectivity in the near, middle and far infrared range, can control the thermal radiation effectively, but it is relatively soft, easy bruising, and should be paid very close attention to clean, and the cost is very high.
