Longpass Filters for Vision inspection Apllication

Long wavepass filters are ideal for a variety of applications, such as gas monitoring, temperature, sensing, thermal imaging and motion sensing etc. Long wavepass filters block shorter wavelengths and transmit longer wavelengths. Blocking can be from reflectance, absorption or a combination. Transmission in the pass band can be enhanced with an antireflection coating on the second surface.

  • product origin:

    China
  • shipping port:

    Fuzhou China
  • lead time:

    4 working weeks
  • payment:

    T/T Payment, Western Union
Inquiry now
  • description

1、What is the longpass filter?


Uni Optics’s longpass (LP) Filter is an optical interference or coloured glass filter that attenuates shorter wavelengths and transmits (passes) longer wavelengths over the active range of the target spectrum (ultraviolet, visible, or infrared).


2、What is the typical used of longpass filter?


Long wavepass filters are ideal for a variety of applications, such as gas monitoring, temperature, sensing, thermal imaging and motion sensing etc. Long wavepass filters block shorter wavelengths and transmit longer wavelengths. Blocking can be from reflectance, absorption or a combination. Transmission in the pass band can be enhanced with an antireflection coating on the second surface.


3、Can you provide samples?


Yes, 1-2pcs for testing. Please inform us your detailed requirements, like Cut-On wavelength, transmission range etc.



4、Can you offer coating curve?


Yes. Our optical engineers can design it and send you for checking.



5、Do you have standard LP filters?


Yes. We have LP470, LP500, LP515, LP530, LP550, LP580, LP590, LP610, LP630, LP695, LP715, LP780, LP830, LP850, LP910, LP920, LP950, LP1000 etc.

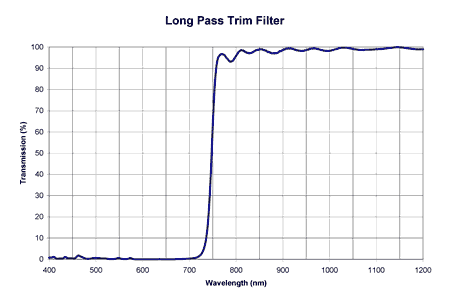

Common Transmittance Curve
