UN-TFA1228L-12MP

· High relative illumination and high contrast
· Low distortion and excellent corner brightness
· High resolution
· Compatible with 1" and 1.1" 12MP camera
Inquiry now
  • description

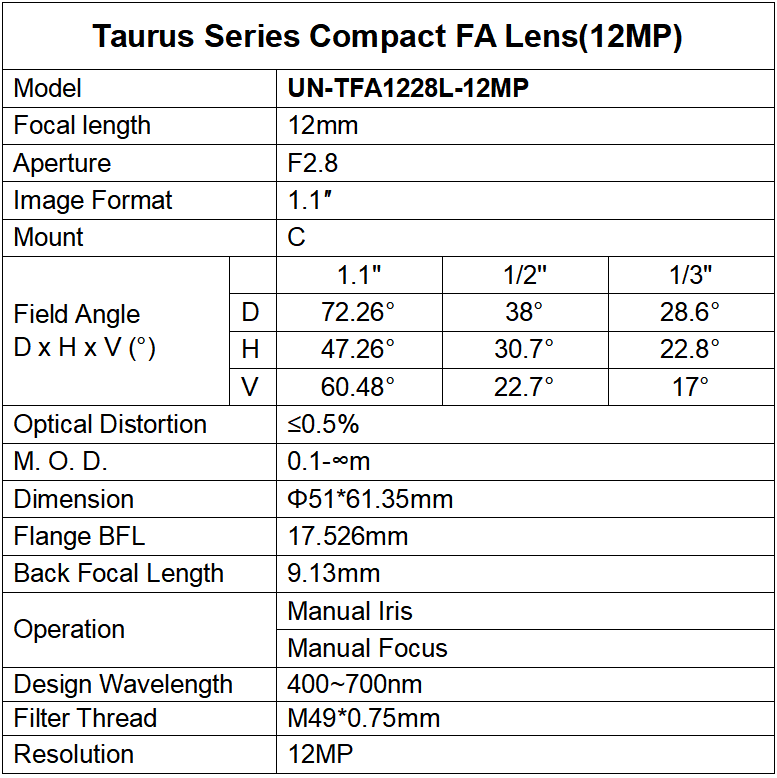

Taurus Series 1.1 Format FA Lens(12MP)

Model

UN-TFA1228L-12MP

Focal length

12mm

Aperture

F2.8

Image Format

1.1

Mount

C

Field Angle

D x H x V (°)



1.1’’

D

72.26°

H

60.46°

V

47.26°

Optical Distortion

0.5%

M. O. D.

0.10m

Dimension

Φ51x61.04

Flange BFL

17.526mm

Back Focal Length

9.13mm

Operation

Manual Iris

Manual Focus

Design Wavelength

400-900nm

Filter Thread

M49*0.75
