UN-TFA1618C

Product Features:


1. Compatible for 2/3'' Format Sensor

2. Ultra-compact Design

3. Ultra Low Distortion

4. High Relative Illumination

5. High Cost Performance

6. Supply with Focus and Iris locking screws.


Product information: Custom designs are available upon request.

Download the datasheet of UN-TFA1618C


Inquiry now
  • description

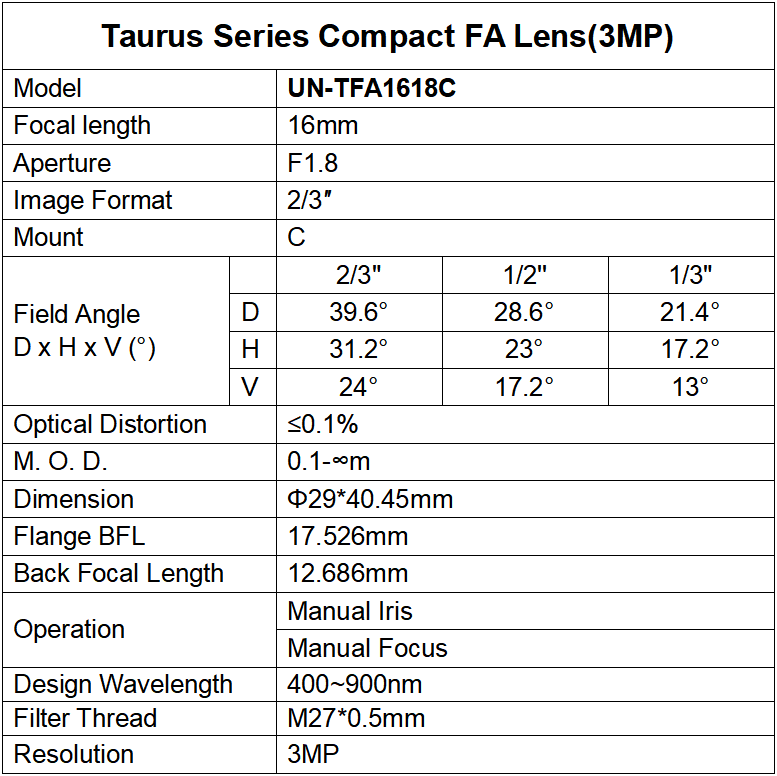

Taurus Series Compact FA Lens(3MP)

Model

UN-TFA1618C

Focal length

1mm

Aperture

F1.8

Image Format

2/3

Mount

C

Field Angle
D x H x V (°)



2/3"

1/2''

1/3"

D

37.94°

28.07°

21.24°

H

30.75°

22.62°

17.06°

V

23.31°

 17.06°

12.84°

Optical Distortion

<0.1%

M. O. D.

0.1m

Dimension

φ29*40.45mm

Flange BFL

17.526mm

Back Focal Length

12.686mm

Operation

Manual Iris

Manual Focus

Design Wavelength

400~900nm

Filter Thread

M27*0.5
