Optical Crystals

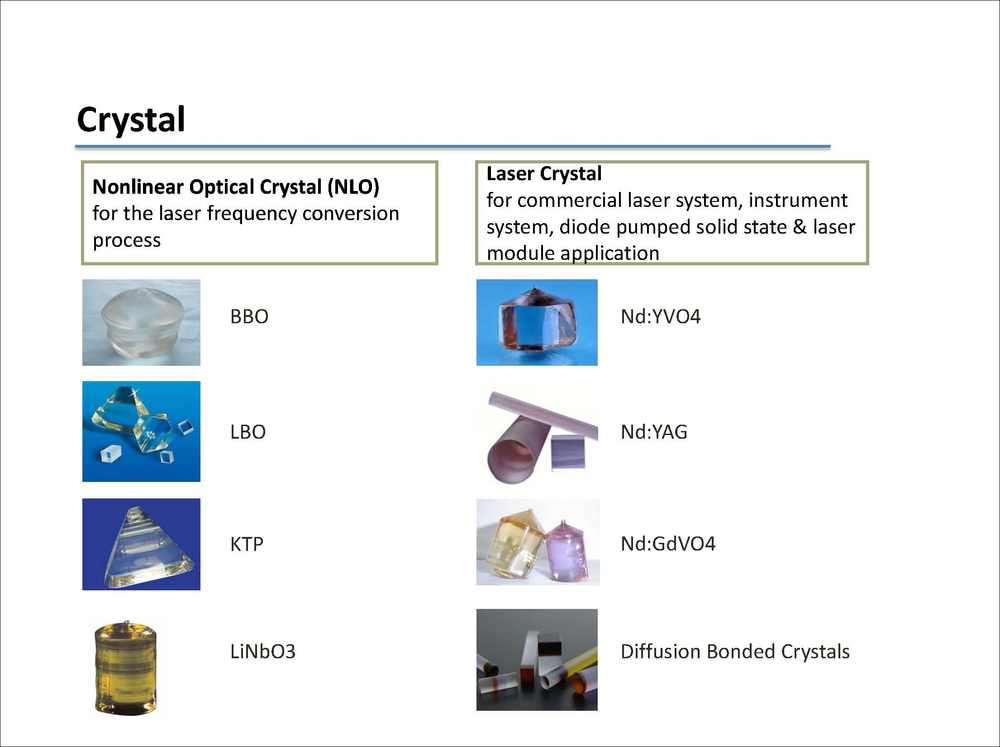

Crystal are most applied for laser application. UNI OPTICS offer the following crystal products.

1. Laser Crystals and Rods: YAG crystal, Nd: YVO4 Crystal

2. Nonlinear Crystals: BBO, KTP, LiNbO3, LBO. KDP&DKDP
3. Birefringent Crystals: YVO4, a-BBO, Calcite.

Inquiry now
