Line Scan Lens UN-ALS1164L-16K

Match with Teledyne camera, for Banknote Inspection, Printing Inspection

· Ultra High Resolution
· Large Format Lens

For high-resolution web inspection, semiconductor wafer inspection, print inspection, etc.

· Developed for 86mm big frame sensor
· Low distortion
· Lens for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For high-end PCB AOI micro-inspection, Mini/Micro LED panel pixel defect detection, photovoltaic silicon wafer EL hidden crack inspection, narrow high-temperature metal strip flaw detection, luxury anti-counterfeit printing texture inspection, electronic ceramic substrate microscopic testing, UAV high-precision aerial survey mapping and ultra-precise online dimensional measurement of micro electronic components.

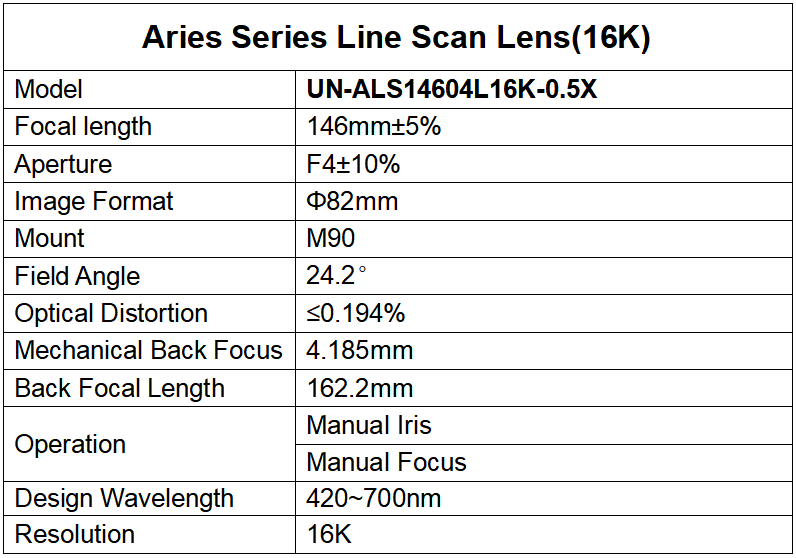

· Developed for 82mm big frame sensor
· Low distortion
· Compatible for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For inspection of lithium battery separators and coated copper & aluminum foils, high-end printing and anti-counterfeit packaging, precision testing of PCBs and 3C electronics, and surface defect detection of metal sheets and coils.

· Developed for 64mm big frame sensor
· Low distortion
· Compatible for 2K, 4K, 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

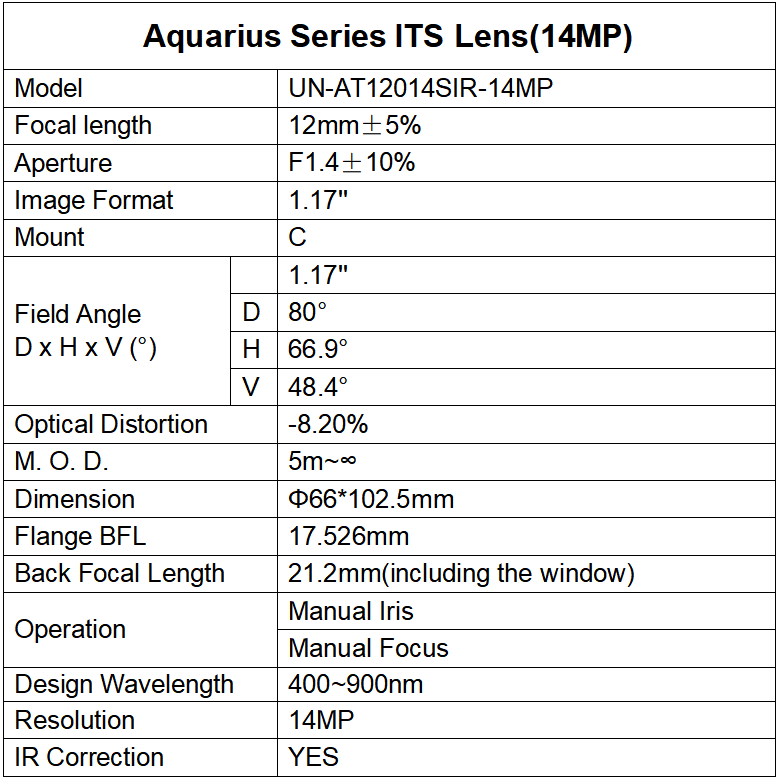

For Intelligent Transportation Systems (ITS) Applications: Road Surveillance, ANPR/ALPR, Automatic Incident Detection, Traffic Enforcement Systems, Railway/Tunnel Safety Monitoring, etc.

· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· High stability and low distortion ensure measurement accuracy

For lithium battery copper foil & pole piece micro-defect detection, PCB inspection, photovoltaic silicon wafer surface screening, precision metal strip flaw detection, advanced cigarette and pharmaceutical printing inspection as well as ceramic electronic substrate detection.

· Developed for 61mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

Product information: Custom designs are available upon request.

For precision optical film inspection, lithium battery copper foil, aluminum foil, separator and pole piece defect detection, FPD panel glass and polarizer inspection, photovoltaic glass and silicon wafer surface screening, high-grade printing and flexible packaging quality inspection, ceramic substrate and metal strip precision appearance detection.

· Developed for 44mm big frame sensor
· High relative illumination
· Lens for 8K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.
