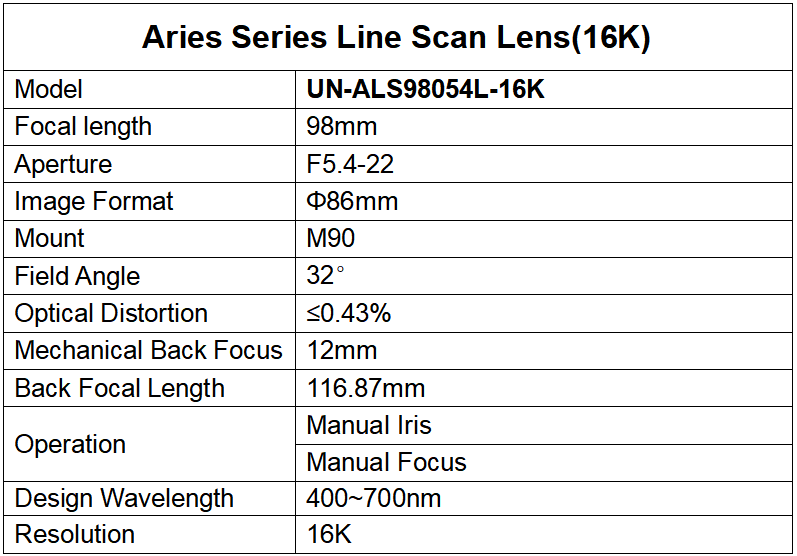

Line Scan Lens UN-ALS98054L-16K

Match with Teledyne camera, for Banknote Inspection, Printing Inspection

· Ultra High Resolution
· Large Format Lens

For high-end PCB AOI inspection, Mini/Micro LED panel micro-defect detection, photovoltaic silicon wafer EL hidden crack inspection, narrow precision metal strip flaw detection, luxury printing anti-counterfeit texture inspection, electronic ceramic substrate microscopic inspection and high-precision linear dimension measurement of tiny electronic components.

· Developed for 66mm big frame sensor
· Low distortion
· Compatible for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For high-end PCB AOI micro-inspection, Mini/Micro LED panel pixel defect detection, photovoltaic silicon wafer EL hidden crack inspection, narrow high-temperature metal strip flaw detection, luxury anti-counterfeit printing texture inspection, electronic ceramic substrate microscopic testing, UAV high-precision aerial survey mapping and ultra-precise online dimensional measurement of micro electronic components.

· Developed for 82mm big frame sensor
· Low distortion
· Compatible for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For color sorting equipments, textile and non-woven fabric surface testing, flexible packaging & large-format printing quality checking, plastic film and paper web flaw detection, flat glass and building panel surface screening, metal strip preliminary defect inspection, lumber board sorting and agricultural material sorting.

· Developed for 40mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 1" and 1.1'' 20MP camera

Product information: Custom designs are available upon request.

For high-precision machine vision applications, widely covering dimensional inspection and surface defect detection for consumer electronics, food and pharmaceutical packaging detection, printing & label inspection, robotic vision guidance and precise positioning, as well as in-line dimensional measurement of automotive components in typical industrial scenarios.

· High relative illumination and high contrast
· Low distortion and excellent corner brightness

· High resolution

· Compatible with 4/3" 12MP camera

Product information: Custom designs are available upon request.

Crystal are main applied for laser application. UNI OPTICS offers the following crystal products.

1. Laser Crystals and Rods: YAG crystal, Nd: YVO4 Crystal

2. Nonlinear Crystals: BBO, KTP, LiNbO3, LBO. KDP&DKDP
3. Birefringent Crystals: YVO4, a-BBO, Calcite.
