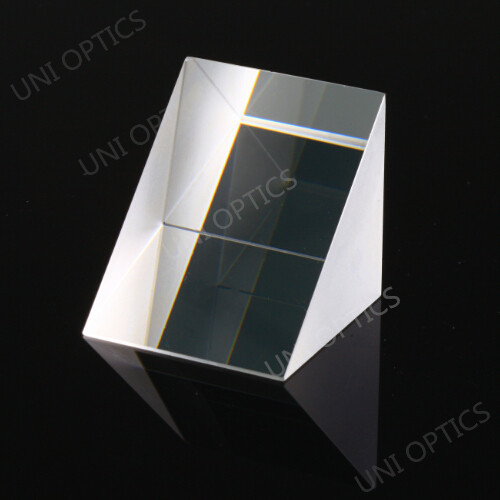

Laser Grade Prisms

Prisms are transparent optical devices which refract or reflect light. They have manifold applications in laser technology.
  • product origin:

    China
  • shipping port:

    Fuzhou China
  • lead time:

    4 working weeks
  • payment:

    T/T prepayment, Western Union
Inquiry now
  • description

What is the Laser Prisms?


Laser Prisms are used to redirect laser beams in a number of beam steering or beam manipulation applications. Laser Prisms use a variety of substrates, coatings, or a combination of the two to achieve high reflectivity of a particular range of wavelengths. Laser Prisms are designed to internally reflect a laser beam off of multiple surfaces in order to redirect the beam path. Laser Prisms come in several types including anamorphic, right angle, or retroreflector varieties designed for different kinds of beam deviation.


Key Features:

High Precision Processing
Excellent Film Performance
High Damage Threshold
Excellent Environment Stability

Processing Capability:

Dimension: 4mm-80mm(Right Angle Side)
Material: BK7 or Fused Silica(Or Custom Design)
Angle Tolerance: +/-5’’
Surface Quality: 10/5
Surface Flatness: Lambda/8@632.8nm
Bevel: 0.25mm*45 degree.
