Plano-Convex Rectangular Cylindrical Lenses

Plano-convex rectangular cylindrical lenses are useful for line imaging or uni-axial magnification in a wide range of applications. These lenses may be combined with other lenses to form complex imaging systems.
  • product origin:

    China
  • shipping port:

    Fuzhou China
  • lead time:

    4 working weeks
  • payment:

    T/T Payment, Western Union
Inquiry now
  • description

Why are Plano-conves Retangular Cylindrical lenses used?


Plano-convex rectangular cylindrical lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping uni-axial magnification in a wide range of applications to circularize laser outputs.These lenses may be combined with other lenses to form complex imaging systems.

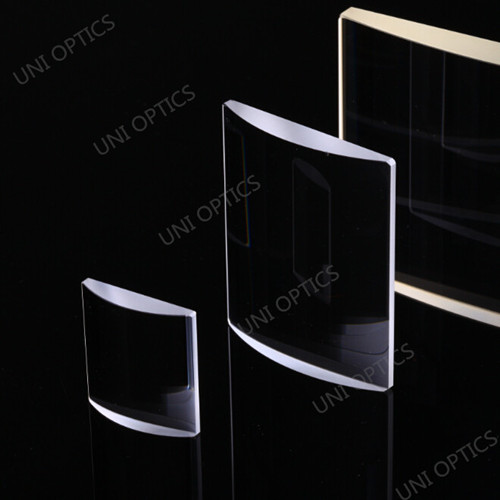

Plano-convex rectangular Cylindrical Lenses  Plano-convex rectangular Cylindrical Lenses


Specifications:


Material: Optical glass, Fused silica
Design wavelength: 546.1nm
Diameter tolerance: +0/-0.05mm
Focal tolerance: +/-2%
surface quality : 40-20 S/D
Centration: 3 arcmin
Surface flatness: N=5 △N=0.5
Clear aperture: 90%
Bevel: Protective
Coating Optional

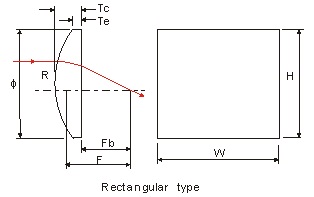

Part NO. Material W x H F(mm) R(mm) Tc(mm) Te(mm) Fb(mm)
ULYPX1010127 BK7 10.0x10.0 12.7 6.54 4.3 2 9.8
ULYPX1010020 BK7 10.0x10.0 20.0 10.29 3.3 2 17.8
ULYPX1010025 BK7 10.0x10.0 25.0 12.87 3.0 2 23
ULYPX1210010 BK7 12.0x10.0 10.0 5.2 5.9 2 6.17
ULYPX1210015 BK7 12.0x10.0 15.0 7.8 3.8 2 12.6
ULYPX1210020 BK7 12.0x10.0 20.0 10.34 3.3 2 17.8
ULYPX2010127 BK7 20.0x10.0 12.7 6.54 , 4.3 2 9.8
ULYPX2010020 BK7 20.0x10.0 20.0 10.29 3.3 2 17.8
ULYPX2010025 BK7 20.0x10.0 25.0 12.87 3.0 2 23
ULYPX2020050 BK7 20.0x20.0 50.0 25.73 4.0 2 47.3
ULYPX2020075 BK7 20.0x20.0 75.0 38.6 3.3 2 72.8
ULYPX2020100 BK7 20.0x20.0 100.0 51.47 4.0 2 97.3
ULYPX2020150 BK7 20.0x20.0 150.0 77.2 3.7 3 147.5
ULYPX2020200 BK7 20.0x20.0 200.0 102.93 3.5 3 197.7
ULYPX2020250 BK7 20.0x20.0 250.0 128.67 3.3 3 247.7
ULYPX2020300 BK7 20.0x20.0 300.0 154.4 3.2 3 297.8
ULYPX2020500 BK7 20.0x20.0 500.0 257.33 4.0 3 497.9
ULYPX4020050 BK7 40.0x20.0 50.0 25.73 3.3 3 47.3
ULYPX4020075 BK7 40.0x20.0 75.0 38.6 3.3 2 72.8
ULYPX4020100 BK7 40.0x20.0 100.0 51.47 4.0 2 97.3
ULYPX4020150 BK7 40.0x20.0 150.0 77.2 3.7 3 147.5
ULYPX4020200 BK7 40.0x20.0 200.0 102.93 3.5 3 197.7
ULYPX4020250 BK7 40.0x20.0 250.0 128.67 3.4 3 247.7
ULYPX4020300 BK7 40.0x20.0 300.0 154.4 3.3 3 297.8
ULYPX4020500 BK7 40.0x20.0 500.0 257.33 3.2 3 497.9
