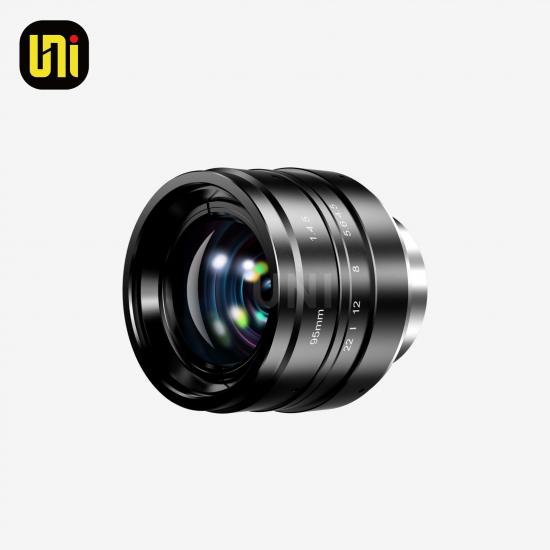

V-Mount Line Scan LensUN-CLS954.5/V45

For narrow-format lithium battery electrode, copper foil and ceramic separator inspection, PCB & single-layer FPC AOI detection, silicon wafer routine sorting, food packaging & label printing quality control, miniature electronic ceramic substrate inspection and vehicle undercarriage scanning.

· Covering a wide working distance range

· Lockable distance and aperture settings

Product information: Custom designs are available upon request.

For lithium battery electrode, copper foil and ceramic separator inspection, PCB & single-layer FPC AOI detection, silicon wafer routine sorting, food packaging & label printing quality control and electronic ceramic substrate inspection.

· Covering a wide working distance range

· Lockable distance and aperture settings

Product information: Custom designs are available upon request.

For medium-wide lithium foil & separator full roll inspection, large-format backlight film & light guide plate testing, wide-size standard PCB & FPC AOI detection, large silicon wafer routine sorting, long-distance railway rail flaw inspection, medium-width cold-rolled metal strip surface testing, wide-format printing & flexible packaging quality control, large electronic ceramic substrate inspection.

· Covering a wide working distance range

· Lockable distance and aperture settings

Product information: Custom designs are available upon request.

For lithium battery electrode, copper foil and ceramic separator inspection, PCB & single-layer FPC AOI detection, silicon wafer routine sorting, food packaging & label printing quality control and electronic ceramic substrate inspection.

· Covering a wide working distance range

· Lockable distance and aperture settings

Product information: Custom designs are available upon request.

For high-resolution web inspection, semiconductor wafer inspection, print inspection, etc.

· Developed for 86mm big frame sensor
· Low distortion
· Lens for 16K line scan camera
· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

For Smart Sensors & Photovoltaic Inspection

· Developed for φ28 image format
· Wavelength: 900-1700nm
· Large Aperture, up to F1.4
· Compact and lightweight design

For High-Precision Machine Vision Applications: Consumer Electronics Dimensional Inspection, Surface Defect Detection, OCR & Code Reading, Robotic Guidance, Biomedical Imaging and so on.

· Developed for 2/3" image format
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.
