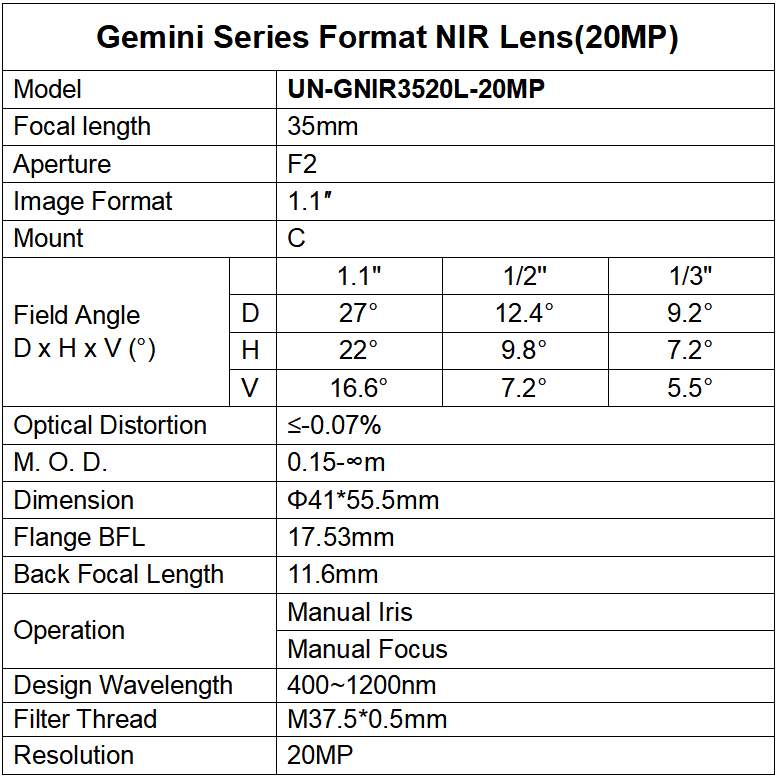

UN-GNIR3520L-20MP

Product Features:

· High relative illumination and high contrast

· High resolution

· Compatible with 1" and 1.1" 20MP camera

Product Features:

· High relative illumination and high contrast

· High resolution

· Compatible with 1" and 1.1" 20MP camera

Product Features:

· High relative illumination and high contrast

· High resolution

· Compatible with 1" and 1.1" 20MP camera

Product Features:

· Developed for φ28 image format
· Wavelength: 900-1700nm
· Large Aperture, up to F1.4
· Compact and lightweight design

Product Features:

· Developed for 30mm big frame sensor

· Excellent optical performance, uniform imaging of center and edge

Product information: Custom designs are available upon request.

1、What Metallic Coated types can Uni-Optics supply?

Uni-Optics mainly offers four coating types, including:

1) UV Enhanced Aluminum : Ravg > 85% from 250nm to 400nm

2) Protected Aluminum: Ravg > 87% from 400nm to 800nm

3) Protected Silver: Ravg > 95% from 400nm to 20um

4) Protected Gold: Ravg > 98% from 650nm to 16um

2、What are the features of Metallic coated mirror?

Metallic coated mirror have many key features below:

Wide spectral range

Not sensitive to the incidence angle and polarization state

Low cost

Non-durable

Relatively low reflectance

Low laser damage threshold

3、What UNI Optics can do for you?

Common Specifications:

Substrate Materials: N-BK7, Fused silica, Pyrex；Float glass

Dimensional tolerance: +/-0.1mm

Surface quality:  60-40

Parallelism:  3’

Flatness: λ/4 per 25mm@633nm

Bevel: Protective

One surface: Polished and Metallic coating

The other surface: Fine ground

Note: Aluminum is the most widely used metal reflection film, from near UV to near IR, have high reflectivity, and with low cost. Silver has higher reflectivity in the visible and near infrared wavelength than the aluminum film, but the silver in the air will be rapid oxidation, color darkening, makes the film performance and firmness declined rapidly. Gold film has a good consistency with high reflectivity in the near, middle and far infrared range, can control the thermal radiation effectively, but it is relatively soft, easy bruising, and should be paid very close attention to clean, and the cost is very high.

Longpass filters are ideal for a variety of applications, such as gas monitoring, temperature, sensing, thermal imaging and motion sensing, etc. Longpass filters block shorter wavelengths and transmit longer wavelengths. Blocking can be from reflectance, absorption or a combination. Transmission in the pass band can be enhanced with an antireflection coating on the second surface.

Product Features:

· Excellent edge sharpness and uniform illumination
· Designed to resist strong light interference, adaptable to complex lighting conditions
· Ultra-high resolution, accurately capture license plates and facial details

Product information: Custom designs are available upon request.

Product Features:

· Developed for φ28 image format
· Wavelength: 900-1700nm
· Large Aperture, up to F1.4
· Compact and lightweight design

Product Features:

· Developed for 2/3" image format
· Compact and lightweight design
· Low distortion
· High relative illumination

· Focus and iris fixed with screw

Product information: Custom designs are available upon request.
