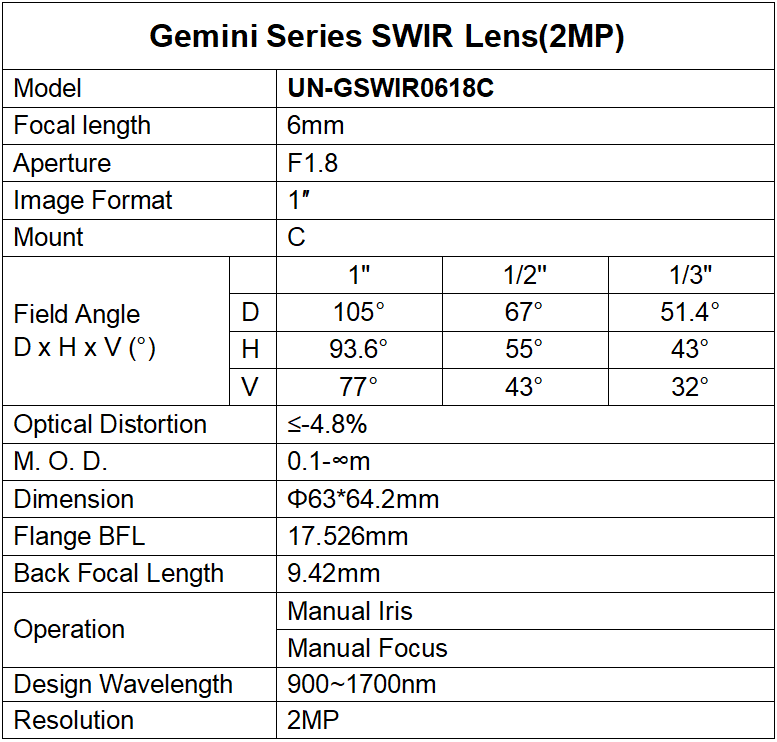

UN-GSWIR0618C

Inquiry now

description

Next :
UN-GSWIR0814CL

Send a Message

If you have any problem when using the website or our products, please write down your comments or suggestions, we will answer your questions as soon as possible!Thank you for your attention!

Subject : UN-GSWIR0618C

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Products

UN-GSWIR1214C

UN-GSWIR10020C

UN-GSWIR4016L

UN-GSWIR2519L

UN-GSWIR5014L

UN-GSWIR0814CL

· Developed for 1" image format
· Wavelength: 900-1700nm
· Large Aperture, upto F1.4
· Compact and lightweight design

UN-GSWIR1614C

Gemini Series SWIR Lens
Model		UN-GSWIR1614C
Focal length		16mm
Aperture		F1.4
Image Format		1″
Mount		C
Field Angle		1″
	D	54°
	H	43.8°
	V	33.4°
Optical Distortion		<-0.6%
M. O. D.		0.3m
Dimension		Φ54*63.00mm
Flange BFL		17.526mm
Back Focal Length		13.72mm
Resolution		80lp/mm
Operation		Manual Iris
		Manual Focus
Design Wavelength		900-1700nm
Filter Thread		M52x0.75

UN-GSWIR2514C

Gemini Series SWIR Lens
Model		UN-GSWIR2514C
Focal length		25mm
Aperture		F1.4
Image Format		1″
Mount		C
Field Angle		1″
	D	61.93°
	H	52.21°
	V	40.1°
Optical Distortion		<-0.96%
M. O. D.		0.3m
Dimension		Φ36.5*54.91mm
Flange BFL		17.526mm
Back Focal Length		11.51mm
Resolution		80lp/mm
Operation		Manual Iris
		Manual Focus
Design Wavelength		900-1700nm
Filter Thread		M34*0.5
