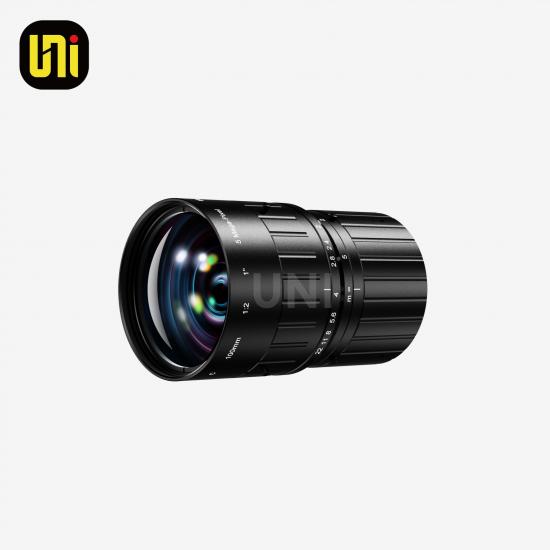

UN-GSWIR10020C

Gemini Series SWIR Lens

Model

UN-GSWIR1614C

Focal length

16mm

Aperture

F1.4

Image Format

1″

Mount

C

Field Angle

1″

D

54°

H

43.8°

V

33.4°

Optical Distortion

<-0.6%

M. O. D.

0.3m

Dimension

Φ54*63.00mm

Flange BFL

17.526mm

Back Focal Length

13.72mm

Resolution

80lp/mm

Operation

Manual Iris

Manual Focus

Design Wavelength

900-1700nm

Filter Thread

M52x0.75

Gemini Series SWIR Lens

Model

UN-GSWIR2514C

Focal length

25mm

Aperture

F1.4

Image Format

1″

Mount

C

Field Angle

1″

D

61.93°

H

52.21°

V

40.1°

Optical Distortion

<-0.96%

M. O. D.

0.3m

Dimension

Φ36.5*54.91mm

Flange BFL

17.526mm

Back Focal Length

11.51mm

Resolution

80lp/mm

Operation

Manual Iris

Manual Focus

Design Wavelength

900-1700nm

Filter Thread

M34*0.5

Taurus Series 4/3″ Format FA Lens(12MP)

Model

UN-TFA3520X-12MP

Focal length

35mm

Aperture

F2.0-F22

Image Format

4/3″(23mm)

Mount

C

Field Angle

D x H x V (°)

4/3″

1″

1/2"

D

36.8°

26.0°

13.2°

H

29.7°

20.8°

10.6°

V

22.5°

15.8°

7.9°

Optical Distortion

-0.52%@

y=11.5mm

-0.42%@

y=8.0mm

-0.12%@

y=4.0mm

M. O. D.

0.2m

Dimension

Φ48.5*64.3mm

Back Focal Length

18mm

Design Wavelength

420~1000nm

Operation

Manual  Iris

Manual  Focus

Filter Thread

M46×P0.75

Weight

207g

Work Temperature

-20℃～+60℃
