UN-TFA1228L-20MP

· High relative illumination and high contrast

· Low distortion and excellent corner brightness

· High resolution

· Compatible with 1'' and 1.1'' 20MP camera

Inquiry now
  • description

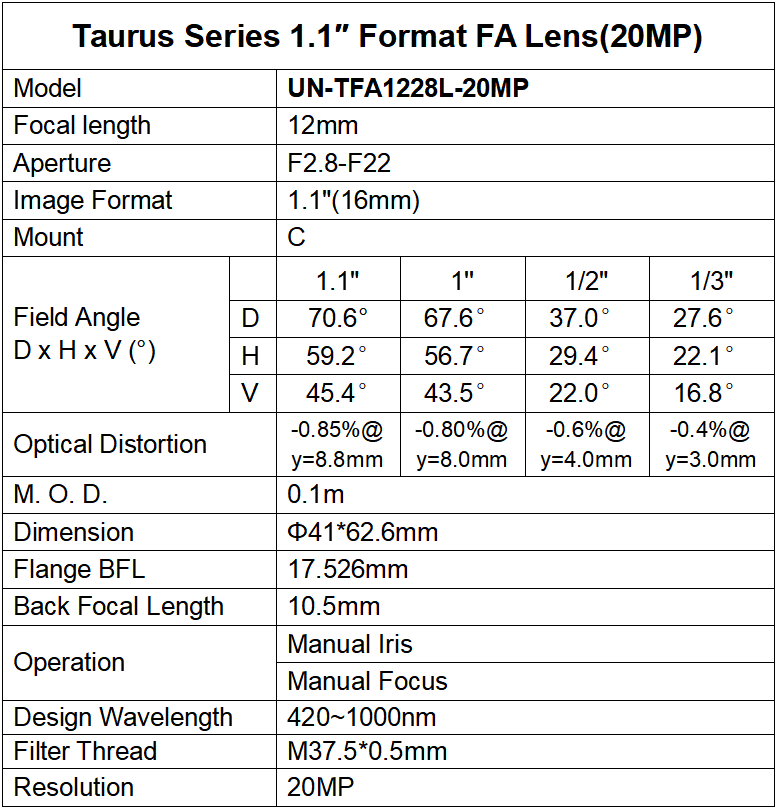

Taurus Series 1.1 Format FA Lens(20MP)

Model

UN-TFA1228L-20MP

Focal length

12mm



Aperture

F2.8-F22

Image Format

1.1"(16mm)

Mount

C

Field Angle



1.1"

1"

1/2"

1/3"

D

70.6°

67.6°

37.0°

27.6°

H

59.2°

56.7°

29.4°

22.1°

V

45.4°

43.5°

22.0°

16.8°

Optical Distortion

-0.85%@ y=8.8mm

-0.80%@

y=8.0mm

-0.6%@

y=4.0mm

-0.4%@

y=3.0mm

M. O. D.

0.1m

Dimension

Φ41*62.6mm

Flange BFL

17.526mm

Back Focal Length

10.5mm

Operation

Manual Iris

Manual Focus

Design Wavelength

420~1000nm

Filter Thread

M37.5×P0.5
